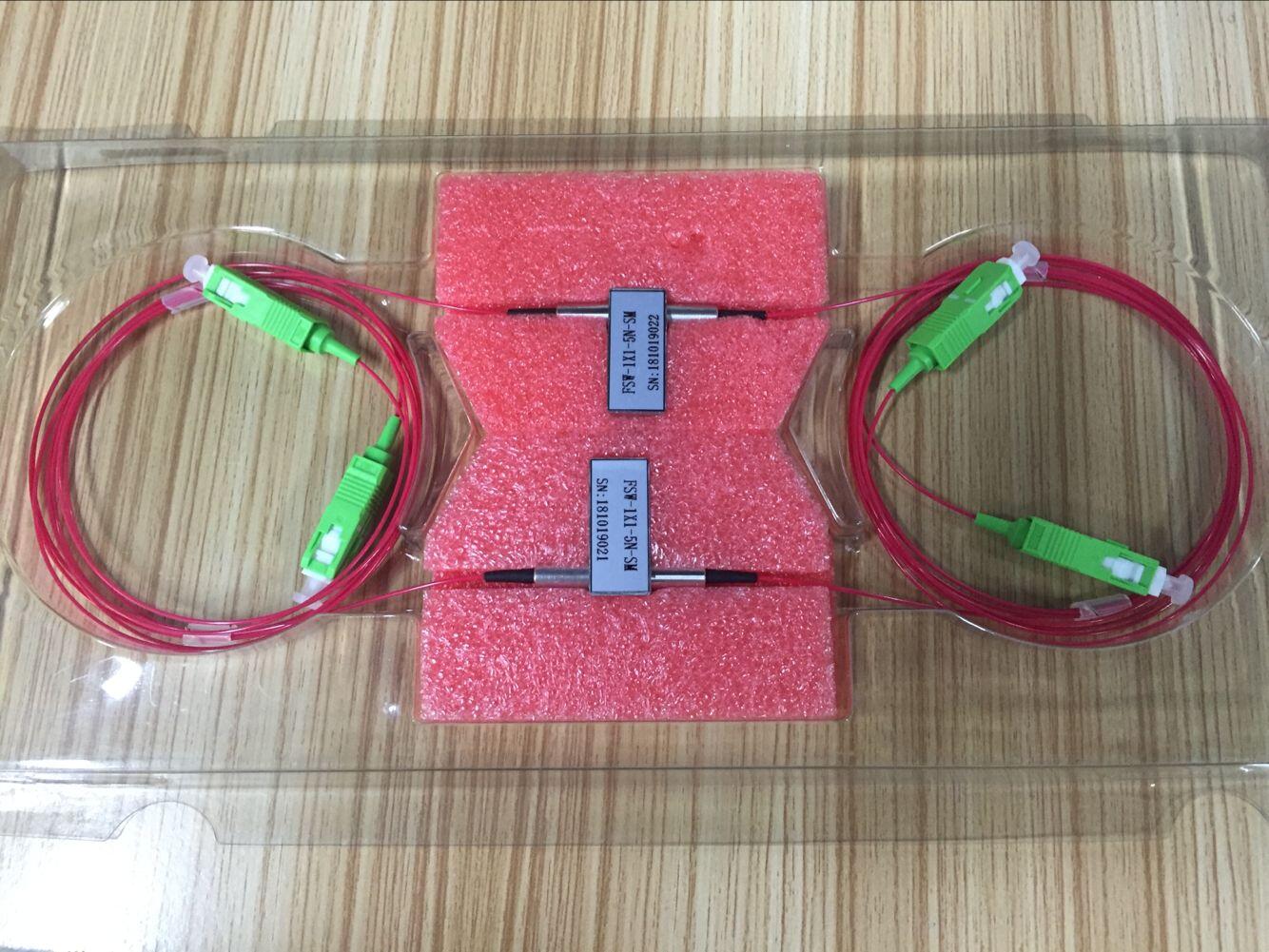

Full 2x2 Mechanical Optical Switch
Descriptions
The Full 2x2 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen-ding opto-mechanical configuration and activated via an electrical control signal.
Features
Unmatched Low Cost
Low Optical Distortions
High Return Loss High Isolation
Epoxy-Free Optical Path
High Reliability
Applications
Configurable Add/Drop
System Monitoring
Instrumentation
Channel Blocking
Specifications
Parameters |
Unit |
Specifications |
Operating Wavelength |
nm |
1260~1620(SM) |
Insertion Loss |
dB |
≤1.0 |
Wavelength Dependent Loss |
dB |
≤0.25 |
Polarization Dependent Loss |
dB |
≤0.05 |
Temperature Dependent Loss |
dB |
≤0.20 |
Return Loss |
dB |
SM≥50 |
Cross Talk |
dB |
SM≥55 |
Switch Time |
ms |
≤8 |
Repeatability |
dB |
≤±0.02 |
Durability |
times |
≥107 |
Operating Voltage |
V |
3 or 5 |
Switch Type |
Non-Latching/Latching |
|
Operating Temperature |
℃ |
-20~+70 |
Storage Temperature |
℃ |
-40~+85 |
Optical Power |
mW |
≤500 |
Dimension |
mm |
27.0L×12.0W×8.2H |
Pin Configurations:
Type |
Optical Route |
Electric Drive |
State Sensor |
||||||
2×2B |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
|
Latching |
P1-P3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
P1-P4、P2-P3 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
Non-latching |
P1-P3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
P1-P4、P2-P3 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
Ordering Information
F22MOS– A— B — C - D — E — F — G |
||
A |
Wavelength |
1060,C+L,1310,1410,1550,650,780,1260~1620,1310/1550,850,Special |
B |
Switch Type |
Latching, Non-latching, MINI Latching, MINI Non-latching, or others |
C |
Voltage |
03=3V,05=5V,Special |
D |
Fiber Type |
SMF-28e, G657A, etc |
E |
Pigtail Type |
BF=Bare Fiber, 0.9=900um tube, or others |
F |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC, etc |
G |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
For example:F22MOS-1460~1620-05-SMF28e-0.9-N-010 |
