High Power Circulator
(1064nm, 1030nm, 980nm)
Features
*Low ion loss
*High extinction ratio
*High isolation
*Excellent stability and reliability
Applications
* Fiber lasers
* Fiber Sensors
* Optical Communications
* Medical Equipment
Specifications
|
Parameters |
Unit |
Value |
|
Center Wavelength |
nm |
1064 or 1030 or 980 |
|
Operating Wavelength Range |
nm |
±5 |
|
Typ. Peak Isolation |
dB |
28 |
|
Max. Isolation at 23℃ |
dB |
22 |
|
Typ. Insertion Loss at 23℃ |
dB |
1.2 |
|
Max. Insertion Loss at 23℃ |
dB |
1.5 |
|
Max. Polarization Dependent Loss at 23℃, only for PI |
dB |
0.15 |
|
Min. Extinction Ratio at 23℃, only for PM |
dB |
20 |
|
Min. Return Loss(Input/ Output) |
dB |
50 |
|
Min. Cross Talk |
dB |
50 |
|
Max. Average Optical Power |
W |
Total: 10 (Including Port 1 & Port 2) |
|
Max. Peak Power for ns Pulse |
kW |
10 |
|
Max. Tensile Load |
N |
5 |
|

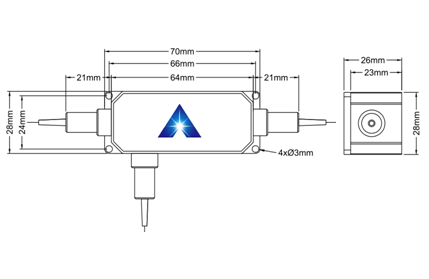

Package Dimension |
mm |
70x28x26 |
|
Operating Temperature |
℃ |
+10~+50 |
|
Storage Temperature |
℃ |
0~+60 |
Ordering Information
|
HPCIR/HPPMCIR – A — B — C— D — E — F — G |
||
|
A |
Wavelength |
1064=1064nm , 1030=1030nm,980=980nm,S=Special |
|
B |
Handling Power |
00=0.5W, 01=1W, 02=2W,......, 05=5W, 10=10W |
|
C |
Axis Polarity(Only for PM) |
F=Slow axis working, Fast axis blocked, B=Both of axis working, N=No axis |
|
D |
Tube Type |
B=bare fiber, 0.9=0.9mm loose tube |
|
E |
Fiber Type |
HI1060, PM980, S=Specified |
|
F |
Package Size |
0=70x28x26mm, S=Specified |
|
G |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m;100=10m ,etc |
|
For example：HPPMCIR-1030-01-F-B-PM980-0-008 |
||
