MTP/MPO Cassette
Descriptions

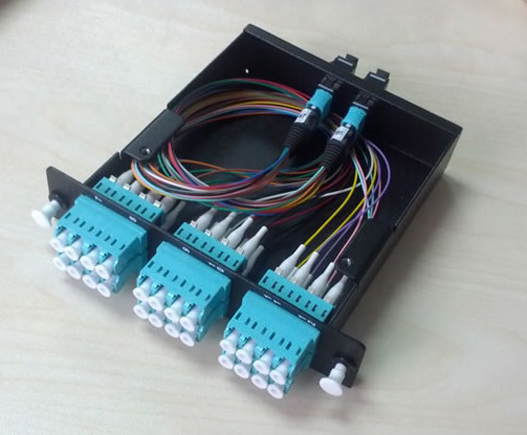

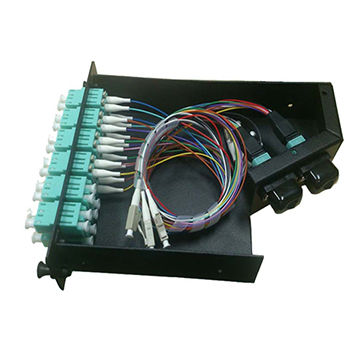

MTP/MPO Cassette Module is an LGX format cassette that transitions between MTP/MPO and LC or SC connectors. This module is used to interconnect MTP/MPO backbones with LC or SC patch cords. The cassette face plate features SC or LC adapters and the rear of the cassette features MPO/MTP adapters. Various mounting options are available to mount the MTP/MPO Cassette Module in a rack or on a wall.

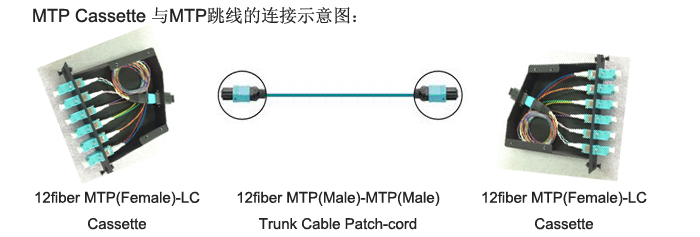

Features
Ideal for high
density datacenter application

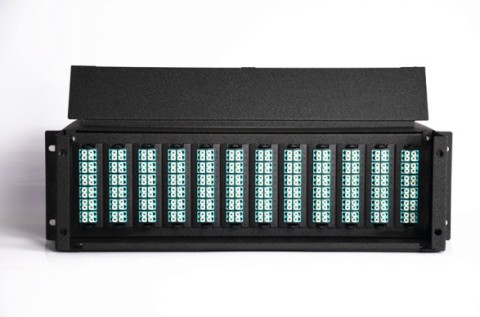

Maximum capacity
of 144 fiber for 1u height

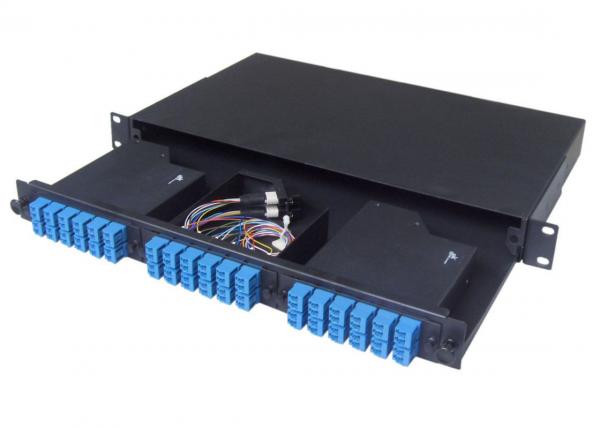

19-inch Patch
panel of standard size
Adopt MTP/MPO connectors single 8~24fiber
push/pull connector
Applications
Data center systems
Telecommunication
systems
CATV networks
LAN & WAN
Specifications
|
Item |
Parameter |
|||||||
|
Connector Type |
SC, LC, MU, etc.. |
MTP/MPO |
||||||
|
Fiber Type |
SM |
MM |
SM |
MM |
||||
|
Insertion Loss(dB) |
Normal |
Low Loss |
Normal |
Low Loss |
Normal |
Low Loss |
Normal |
Low Loss |
|
≤0.2 |
≤0.15 |
≤0.2 |
≤0.15 |
≤0.75 |
≤0.35 |
≤0.5 |
≤0.35 |
|
|
Return Loss(dB) |
UPC |
APC |
UPC |
APC |
APC |
UPC |
||
|
≤50 |
≤60 |
/ |
/ |
≤60 |
≤50 |
|||
|
Repetitiveness(dB) |
≤0.10 |
|||||||
|
Interchangeability(dB) |
≤0.20 |
|||||||
|
Plug-in & out Durability |
>600 times |
|||||||
|
Operating Temperature |
-40℃ to +80℃ |
|||||||
|
Storage Temperature |
-40℃ to +85℃ |
|||||||
Remark: Customized different connector types/specifications.
Ordering Information
|
M -Cassette - A / B / C / D - E / F / G / H - I |
||
|
A |
MT Type |
MTP MPO |
|
B |
Female or Male |
F - Female M - Male |
|
C |
Polishing Angle |
PC APC |
|
D |
Number of Ferrule Channels |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
E |
Connetor Type |
MTP, MPO, SC, LC, MU, etc.. |
|
F |
Female or Male(only MT Type) |
F - Female M - Male |
|
G |
Polishing Angle |
PC APC |
|
H |
Number of Ferrule Channels(only MT Type) |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
I |
Fiber Type |
G652 G657 OM1 OM2 OM3 OM4 etc |
|
For example M -Cassette-MTP/F/PC/24-MTP/F/PC/12*2-OM4 M -Cassette-MPO/M/APC/12-LC/APC*12- G652
|
||
