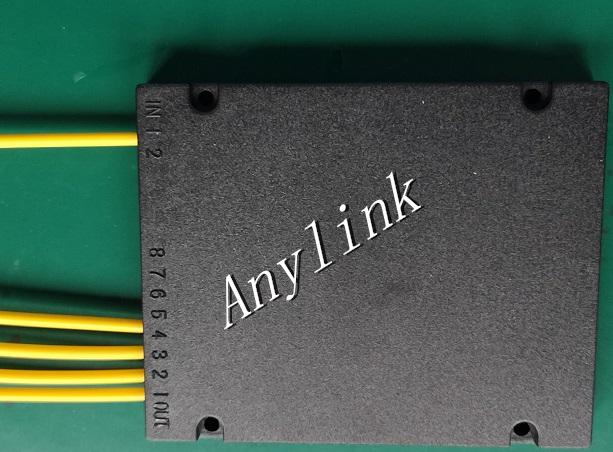

MM Coupler Module
Features Applications
Low Excess Loss FTTX Systems
Various Coupling Ratio LAN, WAN
and Metro Networks
Excellent stability and
reliability CATV Networks
Specifications
|
Configuration |
Unit |
1X4 fused splitter |
1X6 fused splitter |
|
Type |
- |
Multi-Mode Coupler(MMC) |
Multi-Mode Coupler(MMC) |
|
Operating Wavelength |
nm |
850/1300 |
|
|
Operating Bandwidth |
nm |
±40 |
|
|
Optical source |
- |
LED |
|
|
Max Insertion Loss |
dB |
≤7.8 |
≤10.0 |
|
Uniformity |
dB |
≤1.2 |
≤1.5 |
|
Return Loss |
dB |
≥35.00 |
|
|
Operating Temperature |
Deg. |
-5~75 |
|
|
Storage Temperature |
Deg. |
-40~85 |
|
|
Fiber Type |
- |
50/125 or 62.5/125 |
|
|
Cable type |
- |
3mm loose tube |
|
|
Package |
mm |
100X80X10 |
|
|
connector |
- |
FC/APC |
|
Remark: Above specifications are for device without connector.
Ordering Information
|
MMCM– A - B — C - D — E — F — G — H — I |
||
|
A |
Grade |
P=Premium Grade, A=Average Grade, O=Others |
|
B |
Configuration |
1×4, 1×6,1×8, 1x16, 1x32, etc |
|
C |
Operating Wavelength |
1300nm, 850nm, 8513=850&1300nm ,etc. |
|
D |
Coupling Ratio |
EVEN |
|
E |
Pigtail Type |
B=250um bare fiber, 0.9=0.9mm loose tube, 2.0= 2.0mm loose tube, 3.0=3.0mm loose tube etc |
|
F |
Fiber Type |
50/125 , 62.5/125, others |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/APC, FC/UPC, FC/APC,ST/APC etc |
|
H |
Package Size |
100x80x10mm, etc. |
|
I |
Fiber length |
005=0.5m, 010=1.0m, etc |
|
For example：MMCM-P-1x6-8513-EVEN-3.0- 62.5/125 - FC/APCx7 -100x80x10-010 |
||
