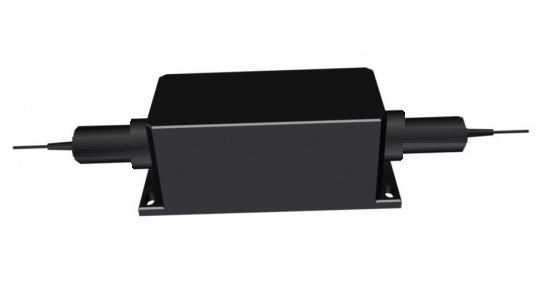

High Power Isolator
(1064nm, 1030nm, 980nm)
Descriptions
The high power isolator is characterized with low ion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability.
Features
High Isolation
Low Insertion Loss
High Return Loss
High stability & Reliability
Applications
Fiber Laser
Testing Instrument
Polarization Maintaining Fiber Amplifier
Specifications
|
Parameters |
Value |
|
Center Wavelength (nm) |
1064 or 1030 or 980 |
|
Operating Wavelength Range (nm) |
±5 |
|
Typ. Peak Isolation at 23℃ (dB) |
30 |
|
Isolation at 23℃ (dB) |
≥25 |
|
Typ. Insertion Loss at 23℃ (dB) |
≤0.8 |
|
Insertion Loss at 23℃ (dB) |
≤1 |
|
Polarization Dependent Loss at 23℃, only for PI (dB) |
≤0.2 |
|
Extinction Ratio at 23℃(only for PM) (dB) |
≥20 |
|
Return Loss(Input /Output) (dB) |
≥45 |
|
Average Optical Power (W) |
≤10 |
|
Peak Power for ns Pulse (KW) |
≤10 |
|
Tensile Load (N) |
≤5 |
|

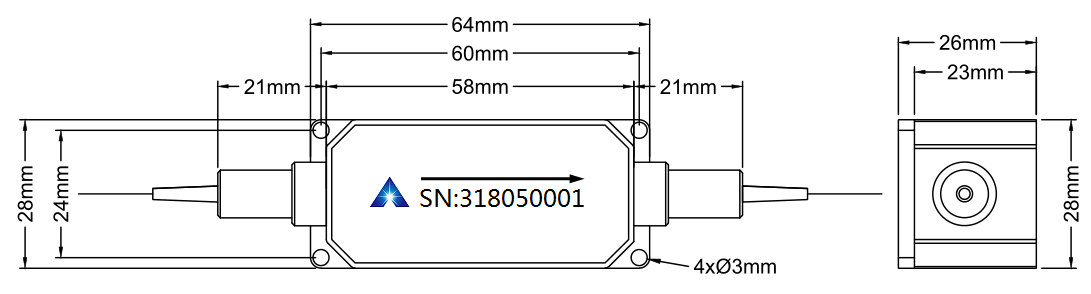

Package Dimension (mm) |
58x28x26 |
|
Operating Temperature (℃) |
+10~+50 |
|
Storage Temperature (℃) |
0~+60 |
Remark: The Above specifications is without connector. IL is 0.50dB higher, RL is 5dB lower and ER is 3dB lower for each connector added. The default connector key is aligned to slow, the connector handle power ≤0.5W
Ordering Information
|
HPISO– A— B — C - D — E — F — G — H |
||
|
A |
Center Wavelength |
1064=1064nm, 1030=1030nm, 980=980nm |
|
B |
Fiber Type |
Hi1060, PM980 or others |
|
C |
Pigtail Type |
BF=Bare Fiber,0.9=0.9mm Tube |
|
D |
Axis Alignment |
F=Slow axis working, Fast axis blocked, B=Both of axis working |
|
E |
Handling Power |
1=1W,5=5W,10=10W,50=50W,100=100W,Customer Request |
|
F |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC,etc |
|
G |
Package Size |
58x28x26mm or others |
|
H |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example：HPISO-1030-PM980-BF-F-1-FC/UPC*2-58x28x26-010 |
||
