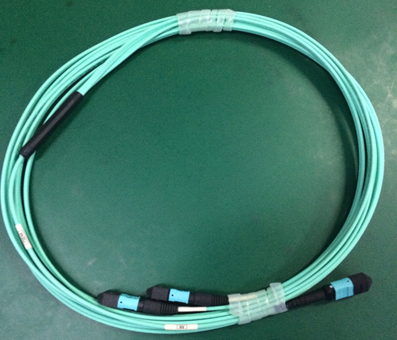

MTP Y-Cable
Descriptions
Anylink provides MTP Y-Cable Assemblies which are designed for high density applications with required high performance and speedy installation without onsite termination.
Features
Improves
and simplifies fiber routing
Low
Insertion Loss, High Return Loss
High quality
Ferrule, High Density
Compliant
Telcordia GR-326-CORE, Rohs
Applications
Data center systems
Telecommunication
systems
Module systems
Specifications
|
Parameter |
Specification |
||
|
Operating wavelength(nm) |
SM |
MM |
|
|
1310/1550 |
850/1300 |
||
|
Fiber type |
OS2, G652, G657 etc |
OM1, OM2, OM3, OM4 etc |
|
|
Insertion loss(dB) |
Ultra low loss MTP |
IL≤0.35 |
IL≤0.30 |
|
Normal MTP |
IL≤0.70 |
IL≤0.6 |
|
|
Return loss(dB) |
RL(UPC)≥25dB RL(APC)≥60dB |
/ |
|
|
MTP tube type(1*2) |

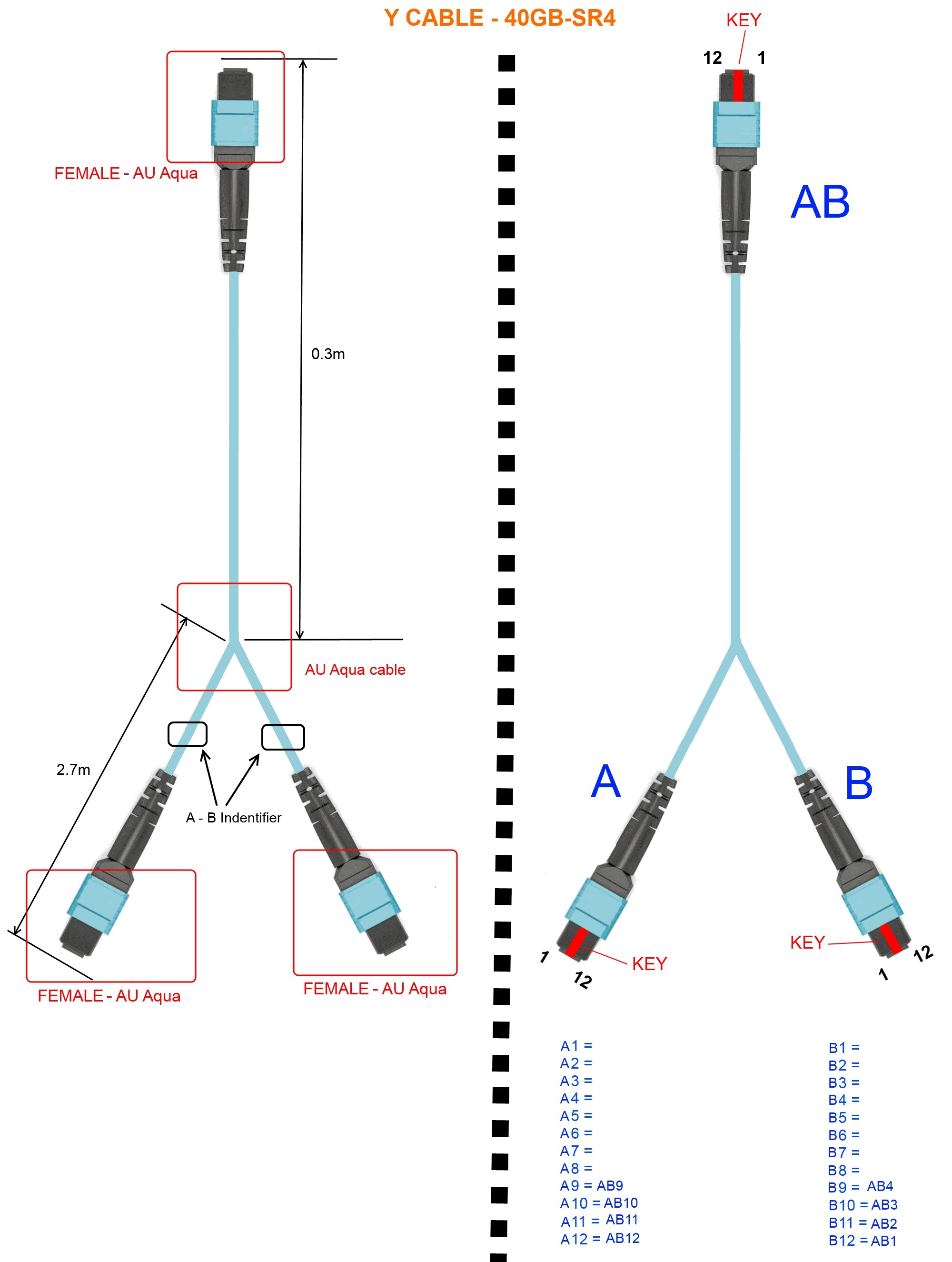

Flat cable, Round cable (As shown in the attached figure) |
||
|
Repetitiveness (dB) |
≤0.10 |
||
|
Interchangeability (dB) |
≤0.20 |
||
|
Durability |
600 times |
||
|
Operating temp |
-40℃ to +80℃ |
||
|
Storage Temp |
-40℃ to +85℃ |
||
Remark: Customized different connector type/ length tolerance/specifications.
Ordering Information
|
MTP Y-Cable - A / B / C / D - E / F - G - H - I |
||
|
A |
MT Type |
MTP MPO |
|
B |
Female or Male |
F - Female M - Male |
|
C |
Polishing Angle |
PC APC |
|
D |
Number of Ferrule Channels |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
E |
MT Type |
MTP MPO |
|
F |
Female or Male |
F - Female M - Male |
|
G |
Polishing Angle |
PC APC |
|
H |
Number of Ferrule Channels |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
G |
Fiber Type |
G652 G657 OM1 OM2 OM3 OM4 etc |
|
H |
Tube Type |
JRC - Jacket Ribbon Cable |
|
3RT - 3.0mm Round Tube etc |
||
|
I |
Total length/Branch length |
015/010 - 1.5m/1.0m 025/010 - 2.5m/1.0m etc |
|
For example MTP Y-Cable-MTP/F/PC/24-MTP/F/PC/12*2-OM4-JRC-025/010 |
||
