MTP/MPO Cable
Descriptions

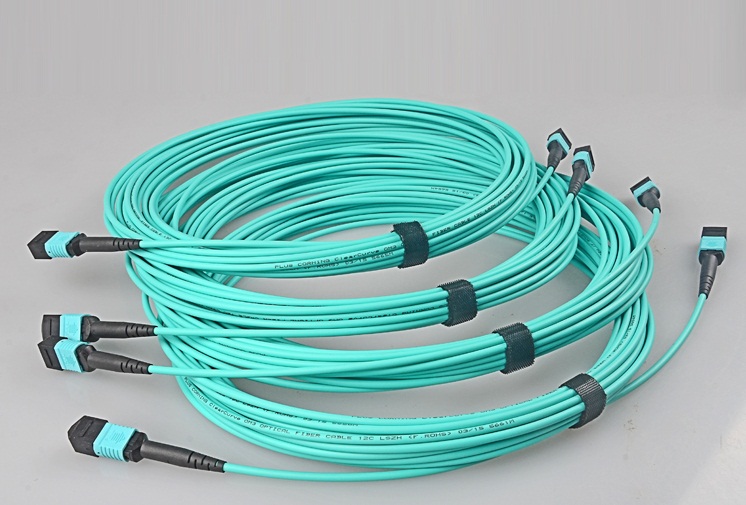

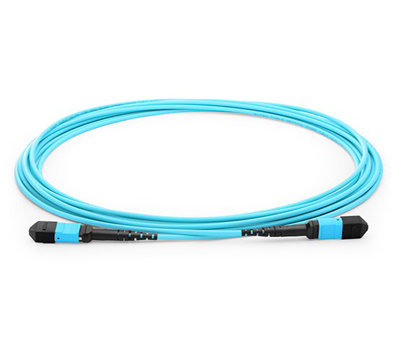

Anylink offers a wide range of MTP/MPO products including single mode or multimode MPO and MTP fiber cable, The MPO fiber cable connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO fiber cable can be mass terminated in combinations of 4, 8, 12, 24, 48 fiber ribbon cables.
Features
Improves
and simplifies fiber routing
Low
Insertion Loss, High Return Loss.
High quality
Ferrule, High Density
Compliant
Telcordia GR-326-CORE, Rohs
Applications
Data center systems
Telecommunication
systems
Optical access
networks(40G/100G SFP, SFP+ , etc.)
Specifications
|
Parameter |
Specification |
||
|
Operating wavelength(nm) |
SM |
MM |
|
|
1310/1550 |
850/1300 |
||
|
Fiber type |
OS2, G652, G657 etc |
OM1, OM2, OM3, OM4 etc |
|
|
Insertion loss(dB) |
Ultra low loss MTP |
IL≤0.35 |
IL≤0.30 |
|
Normal MTP |
IL≤0.70 |
IL≤0.6 |
|
|
MPO |
IL≤0.70 |
IL≤0.70 |
|
|
Return loss(dB) |
MTP or MPO |
RL(UPC)≥25dB |
/ |
|
RL(APC)≥60dB |
|||
|
Fiber Arrangement |
Fiber Polarity: UU=Key-up/Key-up Construction; UD=Key-up/Key-down Construction |
||
|

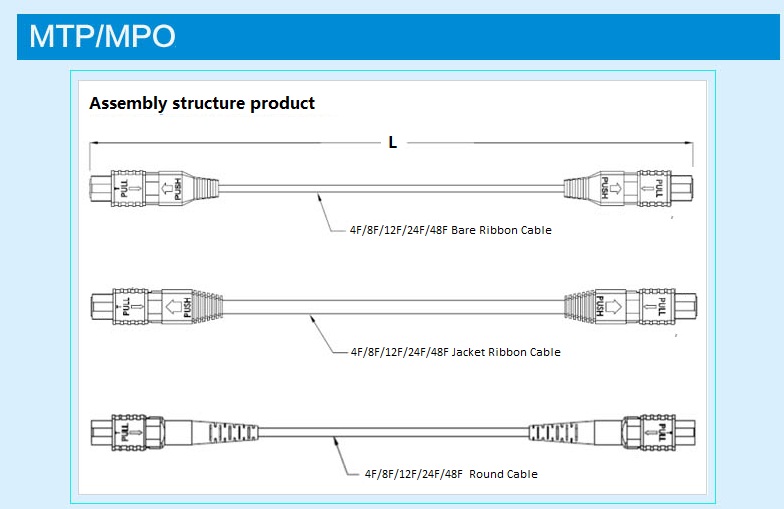

MTP or MPO tube type |
Flat cable, Round cable, Bare ribbon |
||
|
Repetitiveness (dB) |
≤0.10 |
||
|
Interchangeability (dB) |
≤0.20 |
||
|
Durability |
MTP or MPO Plug-in & out≥500 times |
||
|
Operating temp |
-40℃ to +80℃ |
||
|
Storage Temp |
-40℃ to +85℃ |
||
Remark: Customized different connector type/ length tolerance/specifications.
Ordering Information
|
MT Cable - A / B / C - D / E / F - G - H - I - J |
||
|
A |
MT Type |
MTP MPO |
|
B |
Female or Male |
F - Female M - Male |
|
C |
Polishing Angle |
PC APC |
|
D |
MT Type |
MTP MPO |
|
E |
Female or Male |
F - Female M - Male |
|
F |
Polishing Angle |
PC APC |
|
G |
Number of Ferrule Channels |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
H |
Fiber Type |
SM（OS2） G657A OM1 OM2 OM3 OM4 etc |
|
I |
Fiber Arrangement |
Fiber Polarity: UU=Key-up/Key-up Construction; UD=Key-up/Key-down Construction |
|
J |
Tube Type |
JRC - Jacket Ribbon Cable BRC- Bare Ribbon Cable 3RT - 3.0mm Round Tube etc |
|
K |
Total length |
008 - 0.8m 015 - 1.5m 030 - 3.0m etc |
|
For example MT Cable-MTP/F/PC-MTP/M/PC-12-OM3-UU-JRC-015 |
||
