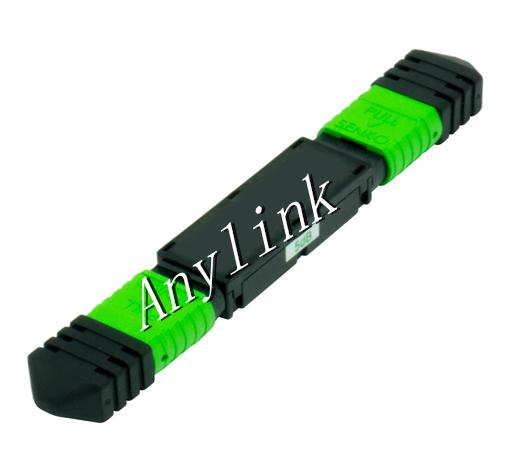

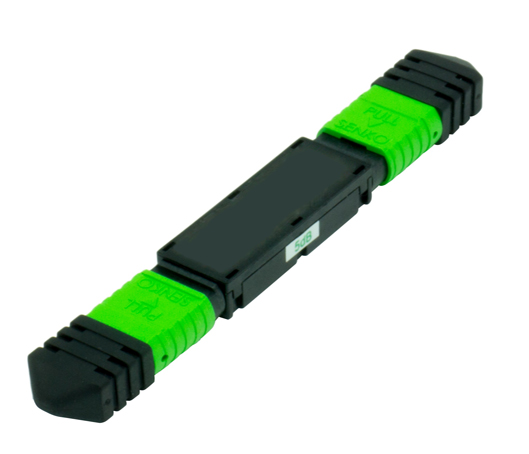

MPO Attenuator
Descriptions
Anylink's MPO attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of Attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5, and IEC 61754-7 with compliance for RoHS.
Features
High stability and High
Durability
Compact Housing Dimension
RoHS Compliant
Applications
Data Center Infrastructure
Storage Area Network and
Fiber Channel
Various 40G and 100Gbps
Protocols
Specifications
|
Parameter |
Conditions |
|
Operating Wavelength(nm) |
1310/1550 |
|
Attenuation(dB) |
Attenuation range: 1~20 Attenuation precision: ±1（Attenuation range≤10dB）, ±10%（Attenuation range ＞10dB） |
|
Return Loss(dB) |
60 (8° Polishing, SM) |
|
Operating temperature |
0~75°C |
|
Housing Dimension (L×W×H) (mm) |
80.0×11.3×8.1 |
Remark: Customized different attenuator type/ length tolerance/specifications.
Ordering Information
|
MPO – A — B — C — D |
||
|
A |
MT Type |
MPO |
|
B |
Female or Male |
F =Female M=Male |
|
C |
Polishing Angle |
0=0°, 8=8° |
|
D |
Number of Ferrule Channels |
8-8F, 12-12F, 16-16F, 24-24F, etc |
|
For example: MPO-M-8-12F |
||
