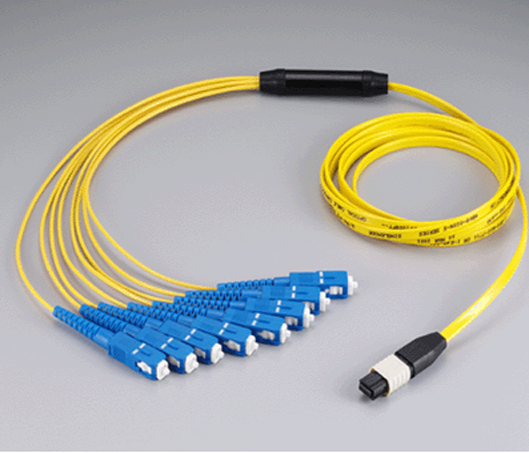

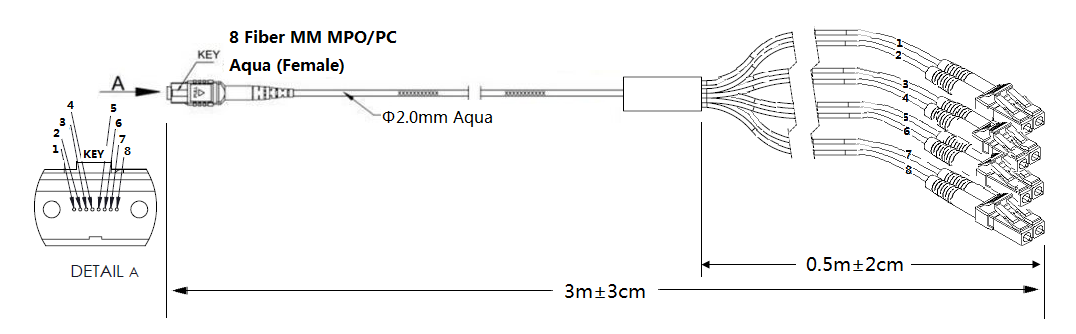

MTP/MPO Fan-out Cable
Descriptions
Anylink provides MPO Fan-out Cable Assemblies which are designed for high density applications with required high performance and speedy installation without onsite termination.
Features
Improves
and simplifies fiber routing
Low
Insertion Loss, High Return Loss.
High quality
Ferrule, High Density
Compliant
Telcordia GR-326-CORE, Rohs
Applications
Data center systems
Telecommunication
systems
Optical access
networks(40G/100G SFP, SFP+ , etc.)
Broadband/CATV
networks/FTTX
Specifications
|
Parameter |
Specification |
||
|
Operating wavelength(nm) |
SM |
MM |
|
|
1310/1550 |
850/1300 |
||
|
Fiber type |
OS2, G652, G657 etc |
OM1, OM2, OM3, OM4 etc |
|
|
Insertion loss(dB) |
Ultra low loss MTP |
IL≤0.35 |
IL≤0.30 |
|
Normal MTP |
IL≤0.70 |
IL≤0.6 |
|
|
MPO |
IL≤0.70 |
IL≤0.70 |
|
|
Fan-out |
IL≤0.20 |
IL≤0.20 |
|
|
Return loss(dB) |
MTP or MPO |
RL(UPC)≥25dB RL(APC)≥60dB |
/ |
|
Fan-out |
RL(UPC)≥50dB, RL(APC)≥65dB |
||
|
MTP or MPO tube type |
Flat cable, Round cable, Bare ribbon |
||
|
Fan-out tube type |
Φ2.0mm, Φ0.9mm |
||
|
Repetitiveness (dB) |
≤0.10 |
||
|
Interchangeability (dB) |
≤0.20 |
||
|
Durability |
MTP or MPO Plug-in & out≥500 times |
||
|
Fan-out: Plug-in & out ≥1000 times |
|||
|
Operating temp |
-40℃ to +80℃ |
||
|
Storage Temp |
-40℃ to +85℃ |
||
Remark: Customized different connector type/ length tolerance/specifications.
Ordering Information
|
Fanout Cord - A / B / C / D - E / F - G - H - I |
||
|
A |
MT Type |
MTP MPO |
|
B |
Female or Male |
F - Female M - Male |
|
C |
Polishing Angle |
PC APC |
|
D |
Number of Ferrule Channels |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
E |
Connector Type |
FC SC LC MU ST DIN D4 SMA etc |
|
F |
Ferrule Type |
PC SPC UPC Adpc APC(Cone) APC (Step) etc |
|
G |
Fiber Type |
SM（OS2） G657A OM1 OM2 OM3 OM4 etc |
|
H |
Tube Type |
JRC - Jacket Ribbon Cable BRC- Bare Ribbon Cable |
|
3RT - 3.0mm Round Tube etc |
||
|
I |
Total length/Branch length |
008/003 - 0.8m/0.3m 025/010 - 2.5m/1.0m etc |
|
For example Fanout Cord-MTP/F/PC/12-FC/PC-OM4-JRC-025/010 |
||
