PM Patch cord
Descriptions

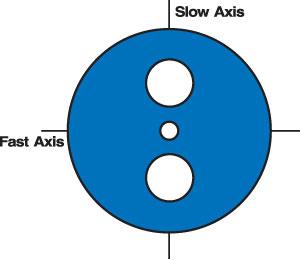

Anylink. manufactures FC, SC, LC, MU and other types Polarization Maintaining fiber connectors. PM Fibers are designed to reduce cross-talk between modes. More information about PM Fiber, including the difference between fast and slow axis, as well as what extinction ratio
Features
Low Insertion Loss, High Return Loss
High Extinction Ratio
Alignment with Different Angle
GR-1221 Compliance
Applications
PM Components
Fiber Sensor System
Coherent module and system
PM Laser Source
Specifications
|
Parameter |
Specification |
||||||||
|
Operating wavelength (nm) |
1550 |
1310 |
980/1060 |
850 |
780 |
633 |
532/450 |
405 |
|
|
Fiber type |
PM 1550 |
PM 1310 |
PM 980 |
PM 850 |
PM 780 |
PM 630 |
PM 460 |
PM 405 |
|
|
Insertion loss(dB) |
≤0.3 |
≤0.5 |
≤0.6 |
≤0.6 |
≤0.85 |
≤1.2 |
≤1.5 |
||
|
Return loss (dB) |
UPC |
≥50dB |
|||||||
|
APC |
≥60dB |
||||||||
|
Extinction ratio(dB) |
≥25 |
≥25 |
≥24 |
≥23 |
≥23 |
≥21 |
≥20 |
≥20 |
|
|
Operating temperature (℃) |
-20 ~ +75 |
||||||||
|
Storage temperature (℃) |
-40 ~ +85 |
||||||||
Ordering Information
|
PMPC – A/B — C/D — E — F — G — H — I — J |
||
|
A |
Connector Type |
FC, SC, LC, MU, ST, etc |
|
B |
Ferrule Type |
PC, UPC, APC(Cone), APC (Step), etc |
|
C |
Connector Type |
FC, SC, LC, MU, ST, etc |
|
D |
Ferrule Type |
PC, UPC, APC(Cone), APC (Step), etc |
|
E |
Fiber Type |
PM1550, PM1310, PM980, PM850, etc |
|
F |

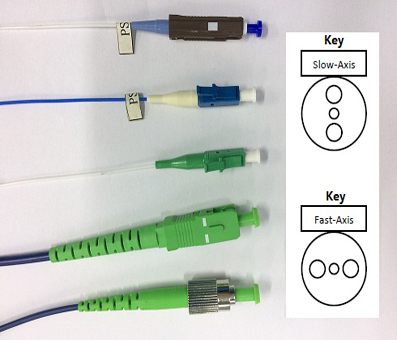

Axis Polarity |
SA=Slow-Axis(in line with key), FA=Fast-Axis (perpendicular to key), Customer Request |
|
G |
Tube Type |
0.9=0.9mm loose tube,2.0= 2.0mm loose tube, 3.0=3.0mm loose tube etc |
|
H |
Jacket Color |
Blue(standard), White, Clear (Bare Fiber Only), etc |
|
I |
Jacket Material |
PVC, Hytrel, Riser OFNR, PVDF, Customer Request |
|
J |
Total length |
005=0.5m; 010=1.0m 100=10m etc |
|
For example：PMPC -FC/APC—SC/UPC-PM1550-SA-0.9-Blue-Hytrel-010 |
||
