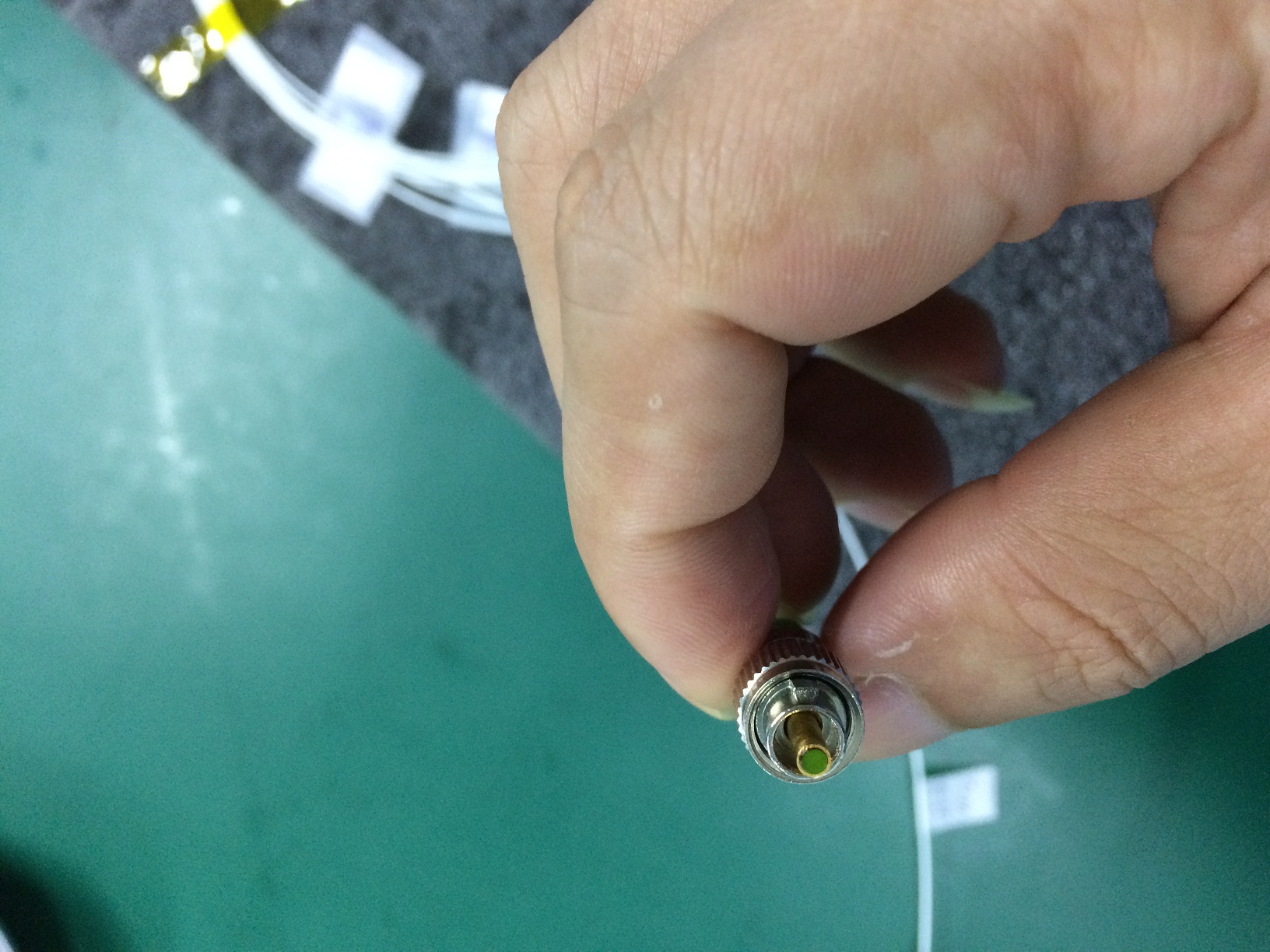

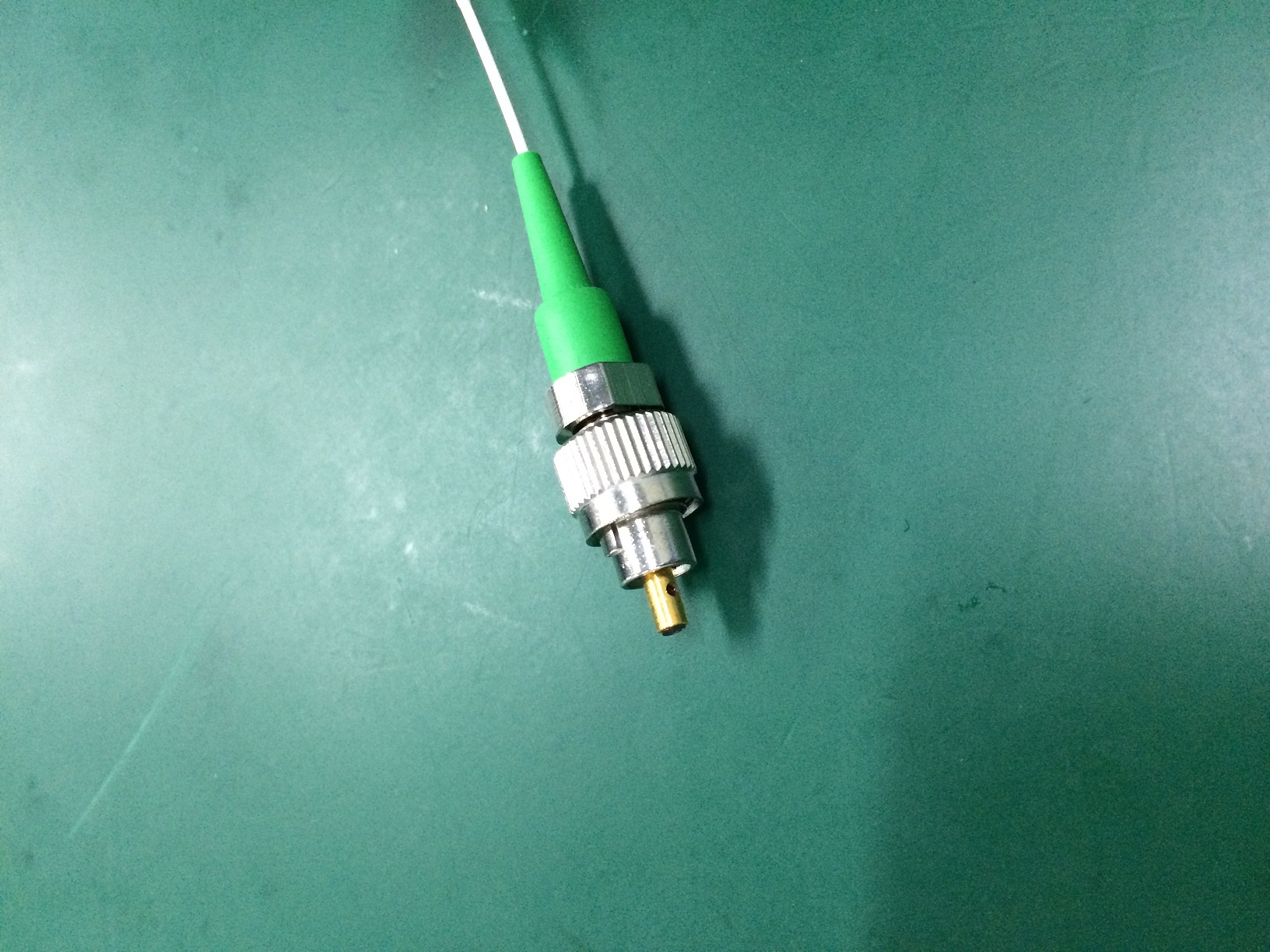

HighPower Jumper
Descriptions

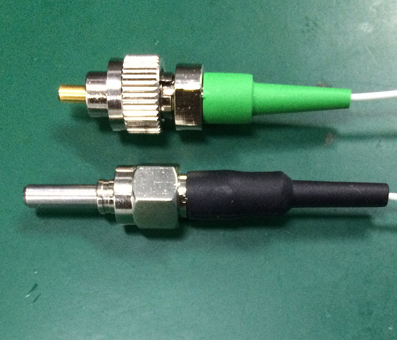

Anylink. manufactures FC, SMA905 and other types HPconnectors.
Features
High precision connector assembly parts and ferrule
Can match many types of large core multi-mode fiber
Telcordia GR-326-CORE Compliance
Applications
Pump pigtail
High power transmission system
Medical laser application
Specifications
|
Parameter |
HighPower Jumper |
|
|
Operating wavelength (nm) |
915,976 or other |
|
|
Ferrule material |
Glass,Ceramic Or Metal(End face groove or flat) |
|
|
High power |
Fiber type |
Max power handling（W） |
|
SM fiber+End cap |
10 |
|
|
PM fiber+End cap |
||
|
Nufern-MM-S105/125-0.22NA |
50 |
|
|
Nufern-MM-S200/220-22A |
100 |
|
|
Nufern-MM-S400/440-22A |
||
|
Operating temperature (℃) |
-40 ~ + 85 |
|
Remark: 1. Customized different connector type/ length tolerance/specifications.

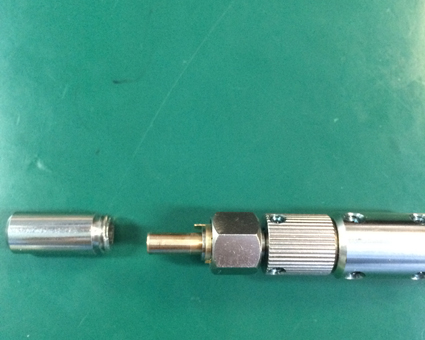

2. The metal ferrule of SMA905 is divided into flat and groove structure, which is used only for free space connection(empty)
Ordering Information
|
HP Jumper – A/B — C/D — E — F — G — H — I — J |
||
|
A |
Connector Type |
FC, SMA905, etc |
|
B |
Ferrule Type |
APC, PC(groove), PC (flat), etc |
|
C |
Connector Type |
FC, SMA905, etc |
|
D |
Ferrule Type |
APC, PC(groove), PC (flat), etc |
|
E |
Fiber Type |
SMF-28e, PM1550, PM1310, 105/125, 200/220, 400/440, 800/880, Customer Request |
|
F |
Max power handling |
1=1W,5=5W,10=10W,50=50W,100=100W,Customer Request |
|
G |
Tube Type |
0.9=0.9mm looseTubing,2.0= 2.0mm looseTubing,, 3.0=3.0mm looseTubing, 3mm armour looseTubing, etc |
|
H |
Jacket Color |
White(SM standard) , Orange(MM standard), Clear (Bare Fiber Only), etc |
|
I |
Jacket Material |
PVC, Hytrel, Riser OFNR, PVDF, Customer Request |
|
J |
Total length |
005=0.5m; 010=1.0m 100=10m etc |
|
For example：HP Jumper -FC/PC(flat)—SMA905/PC(groove)-200/220-10-0.9-Orange-PVDF-010 |
||
