Patch cord
Descriptions

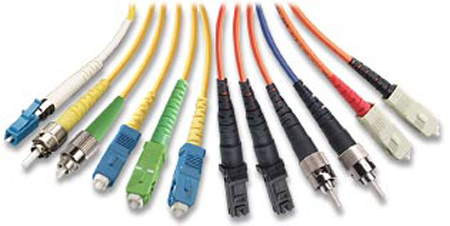

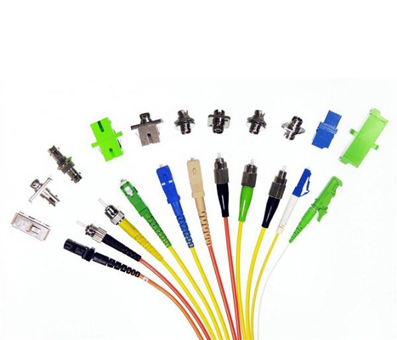

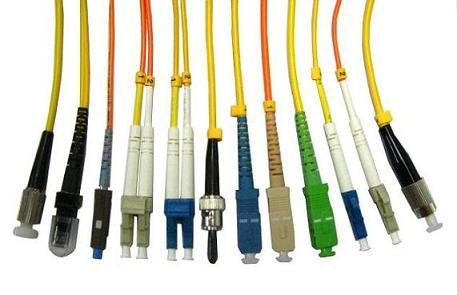

Anylink. manufactures FC, SC, LC, MU, ST, D4, DIN, SMA905, MTRJ and other types fiber connectors.
Features
Low Insertion Loss, High Return Loss
High quality Ferrule, High Density
High repeatability
Applications
Components
Fiber Systems and device
module and system
Specifications
|
Parameter |
Specification |
|||||||||
|
Multi -Mode |
Single Mode |
|||||||||
|
Operating wavelength (nm) |
850/1310 |
1310/1550 |
980/1060 |
800/850 |
630 |
450 |
405 |
|||
|
Fiber type |
OM2/OM3/OM4 or others |
SMF-28e or others |
HI1060 (flex) |
HI780 or SM800 |
SM600 |
SM 460 |
SM 405 |
|||
|
Grade |
P |
A |
P |
A |
A |
A |
A |
A |
A |
|
|
Insertion loss (dB) |
≤0.15 |
≤0.2 |
≤0.15 |
≤0.2 |
≤0.35 |
≤0.6 |
≤0.85 |
≤1.2 |
≤1.5 |
|
|
Return loss (dB) |
UPC |
≥40 |
≥35 |
≥55 |
≥50 |
≥50dB |
||||
|
APC |
/ |
/ |
≥65 |
≥60 |
≥60dB |
|||||
|
Repeatability (dB) |
≤0.1 |
/ |
||||||||
|
Changeability (dB) |
≤0.2 |
|||||||||
|
Durability |
≥1000 |
|||||||||
|
Operating temperature (℃) |
-40 ~ + 85 |
|||||||||
|
Storage temperature (℃) |
-40 ~ +85 |
|||||||||
Remark: Customized different connector type/ length tolerance/specifications.
3D Interferometer parameters
|
Ferrule Type |
physical Parameters |
IEC standard |
Ferrule Type |
physical Parameters |
IEC standard |
|
∮2.5PC |
Radius of Curvature |
10～25mm |
∮2.5APC |
Radius of Curvature |
5～12mm |
|
Fiber Height |
-100~100nm |
Fiber Height |
-100~100nm |
||
|
Apex Offset |
0~50um |
Apex Offset |
0~50um |
||
|
Angle |
0±0.3° |
Angle |
8±0.5° |
||
|
∮1.25PC |
Radius of Curvature |
7～25mm |
∮1.25APC |
Radius of Curvature |
5～12mm |
|
Fiber Height |
-100~100nm |
Fiber Height |
-100~100nm |
||
|
Apex Offset |
0~50um |
Apex Offset |
0~50um |
||
|
Angle |
0±0.3° |
Angle |
8±0.5° |
Ordering Information
|
Patch cord – A/B — C/D — E — F — G — H — I — J |
||
|
A |
Connector Type |
FC, SC, LC, MU, ST, D4, SMA905, etc |
|
B |
Ferrule Type |
PC, UPC, Adpc, APC(Cone), APC (Step), etc |
|
C |
Connector Type |
FC, SC, LC, MU, ST, D4, SMA905, etc |
|
D |
Ferrule Type |
PC, UPC, Adpc, APC(Cone), APC (Step), etc |
|
E |
Fiber Type |
SMF-28e, HI1060(flex),OM2, OM3, OM4, Customer Request |
|
F |
Cable Type |
SX=Simplex Cable |
|
DX=Duplex Zip Cable, Customer Request |
||
|
G |
Tube Type |
0.9=0.9mm Tight Buffer/Tubing,2.0= 2.0mm Jacket, 3.0=3.0mm Jacket, 3mm armour Jacket, etc |
|
H |
Jacket Color |
Yellow(SM standard), Orange(MM standard), White, Clear (Bare Fiber Only), etc |
|
I |
Jacket Material |
PVC, Hytrel, Riser OFNR, PVDF, Customer Request |
|
J |
Total length |
0.5=0.5m; 1=1.0m 10=10m etc |
|
For example：Patch cord -FC/APC—SC/UPC-Hi1060-SX-0.9-Yellow-Hytrel-1 |
||
