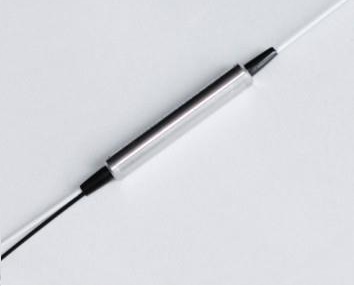

3 Ports Polarization Maintaining Optical Circulator
The 3 ports Polarization Maintaining optical circulator is a 3 ports micro-optic device built with PM fiber.
The PM Circulator transmits a signal from port1 to port2 and transmits another signal from port2 to port3 while
maintaining the polarization of the signal.
*Low ion loss
*High extinction ratio
*High isolation
*Excellent stability and reliability
Applications
* Fiber lasers
* Fiber Sensors
* Optical Communications
* Polarization Mode Dispersion Compensator
Specifications
|
Parameter |
Unit |
3 Ports |
||
|
Type B |
Type B |
Type A |
||
|
Center Wavelength |
nm |
1064 |
1310 or 1550 |
|
|
Operating bandwidth |
nm |
±5 |
±20 |
|
|
Insertion Loss（Type） |
dB |
1.8 |
0.6 |
0.7 |
|
Insertion Loss（Max） |
dB |
2.1 |
0.8 |
0.9 |
|
Isolation |
dB |
≥25 |
≥20 |
≥40 |
|
Extinction Ratio |
dB |
≥20 |
≥22 |
|
|
Return Loss |
dB |
≥50 |
||
|
Cross Talk |
dB |
≥50 |
||
|
Optical Power(CW) |
mW |
≤300 |
||
|
Tensile Load |
N |
≤5 |
||
|
Fiber Type |
|
SM98-PS-U25D |
SM13-PS-U25D, SM15-PS-U25D |
|
|
Optical path |
|
Port1→Port2→Port3 |
||
|
Operating Temperature |
℃ |
-5 to +70 |
||
|
Storage Temperature |
℃ |
-40 to +85 |
||
Ordering Information
|
PMCIR – A — B — C— D — E — F — G— H — I |
||
|
A |
Port Number |
3=3 Ports |
|
B |
Wavelength |
1064=1064nm , 1310=1310nm,1550=1550nm,S=Special |
|
C |
Type |
A=Type A, B=Type B |
|
D |
Axis Alignment |
F=Slow-Axis
working, Fast axis blocked |
|
E |
Tube Type |
B=bare fiber, 0.9=0.9mm loose tube, 2= 2.0mm loose tube, 3= 3.0mm loose tube, etc |
|
F |
Fiber Type |
PM1550, PM1310, PM980, etc |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
H |
Package Size |
5.5x35mm |
|
I |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m;100=10m etc |
|
For example：PMCIR-3-1064-A-F-0.9-PM980-FC/APC*3-5.5x35-010 |
||
