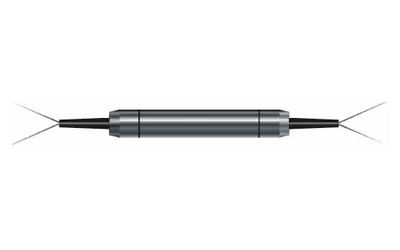

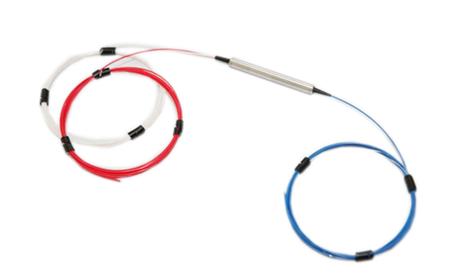

4 Ports Polarization Maintaining Optical Circulator
The 4 ports Polarization Maintaining optical circulator is a 4 ports micro-optic device built with PM fiber.
The PM Circulator transmits the incoming signal from port1 to port2, from port2 to port3, from port3 to port4
while maintaining the polarization of the signal.
Features
*Low ion loss
*High extinction ratio
*High isolation
*Excellent stability and reliability
Applications
* Fiber lasers
* Fiber Sensors
* Optical Communications
* Polarization Mode Dispersion Compensator
Specifications
|
Parameter |
Unit |
4 Ports |
||
|
Type B |
Type A |
Type B |
||
|
Center wavelength |
nm |
1064 |
1310 or 1550 |
|
|
Operating bandwidth |
nm |
±5 |
±20 |
|
|
Insertion loss |
dB |
≤2.5 |
≤1.3 |
≤1.2 |
|
Extinction ratio |
dB |
≥20 |
≥22 |
≥20 |
|
Isolation |
dB |
≥25 |
≥40 |
≥20 |
|
Return loss |
dB |
≥50 |
||
|
Crosstalk |
dB |
≥50 |
||
|
Handling power |
mW |
≤300 |
||
|
Fiber type |
/ |
SM98-PS-U25D |
SM13-PS-U25D SM15-PS-U25D |
|
|
Optical path |
Type A: Port1→Port2→Port3→Port4 (Block Port4→Port1) Type B: Port1→Port2→Port3→Port4→Port1 |
|||
|
Operating temperature |
℃ |
-5 to +70 |
||
|
Storage temperature |
℃ |
-40 to +85 |
||
|

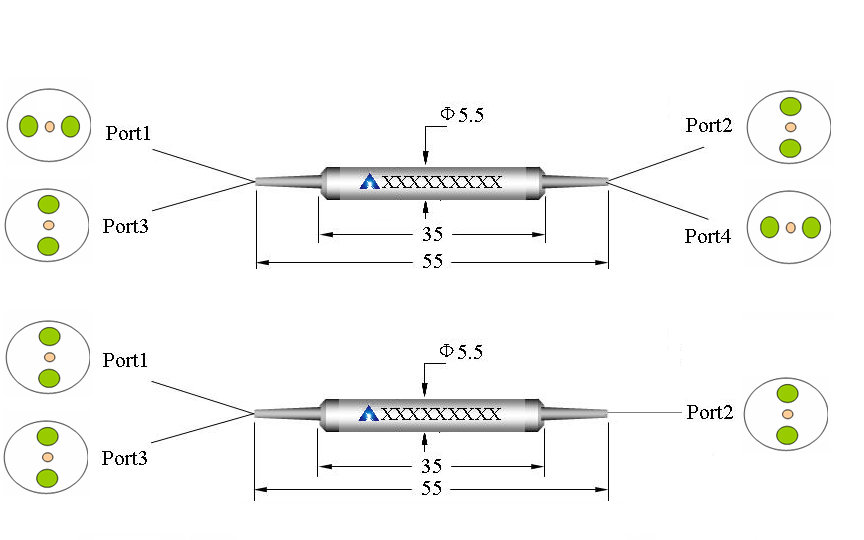

Dimensions |
mm |
Ф5.5× L35 |
||
Remark: The Above specifications is without connector. IL is 0.3dB (1310~1550nm) or 0.5dB (1064nm) higher, RL is 5dB lower and ER is 2dB lower for each connectoradded. The default connector key is aligned to slow axis.
Ordering Information
|
PMCIR – A — B — C— D — E — F — G— H — I |
||
|
A |
Port Number |
4=4 Ports |
|
B |
Wavelength |
1064=1064nm , 1310=1310nm,1550=1550nm,S=Special |
|
C |
Type |
A=Type A, B=Type B |
|
D |
Axis Alignment |
SA=Slow-Axis working, Fast axis blocked |
|
E |
Tube Type |
B=bare fiber, 0.9=0.9mm loose tube, 2= 2.0mm loose tube, 3= 3.0mm loose tube, etc |
|
F |
Fiber Type |
PM1550, PM1310, PM980, etc |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
H |
Package Size |
5.5x35mm |
|
I |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m;100=10m etc |
|
For example：PMCIR-4-1064-A-SA-0.9-PM980-FC/APC*3-5.5x35-010 |
||
