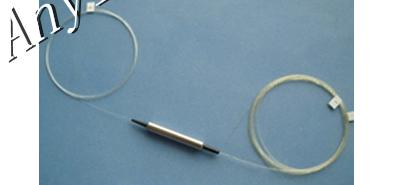

PM Isolator & WDM Hybrid
(T1030/R980)
The pm isolator & WDM Hybrid is characterized with low ion loss, high isolation, high extinction Ratio, high return loss, excellent environmental stability and reliability.
Features
High Isolation
Low Insertion Loss
High Return Loss
High Extinction Ratio
High stability & Reliability
Applications
Fiber Laser
Testing Instrument
Fiber Amplifier
Specifications
|
Parameter |
Unit |
Value |
||
|
Stage |
- |
Single |
Dual |
|
|
Signal Channel |
Signal Wavelength Range |
nm |
1030 |
|
|
Max. Insertion Loss |
dB |
4.0 |
7.0 |
|
|
Min. Signal Reversed Isolation, at 23℃ |
dB |
25 |
35 |
|
|
Min. Isolation (Com to Pass @ Ref band Wavelength) |
dB |
25 |
||
|
Min. Extinction Ratio at 23℃ |
dB |
20 |
||
|
Reflection Channel |
Wavelength Range |
nm |
960~990 |
|
|
Max. Insertion Loss |
dB |
0.8 |
||
|
Min. Isolation (Com to Ref @ Pass band Wavelength) |
dB |
15 |
||
|
Min. Extinction Ratio at 23℃ |
dB |
18 |
||
|
Min. Return Loss |
dB |
50 |
||
|
Max. Insertion Loss Thermal Stability |
dB/℃ |
0.005 |
||
|
Max. Optical Power(CW) |
mW |
100 |
||
|
Max. Tensile Load |
N |
5 |
||
|
Fiber Type |
- |
PM980 |
||
|
Operating Temperature |
℃ |
-5~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
Remark: The Above specifications is without connector. IL is 0.30dB higher, RL is 5dB lower and ER is 3dB lower for each connector added. The default connector key is aligned to slow, the connector handle power ≤0.5W
Ordering Information
|
PMIWDM– A— B — C - D — E — F — G — H |
||
|
A |
Stage |
S=Single-core stage, D=Dual-core stage |
|
B |
Pump Type |
F=Forward, B=Backward |
|
C |
Center Wavelength |
1030=1030nm |
|
D |
Fiber Type |
PM980 |
|
E |
Pigtail Type |
BF=Bare Fiber,0.9=0.9mm Tube |
|
F |
Axis Alignment (Only for PM) |
F=Slow axis working, Fast axis blocked, B=Both of axis working |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC,etc |
|
H |
Package Size |
5..5x35mm or others |
|
I |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example：PMIWDM-S-F-1030-PM980-BF-F-FC/UPC*2-5.5x35-010 |
||
