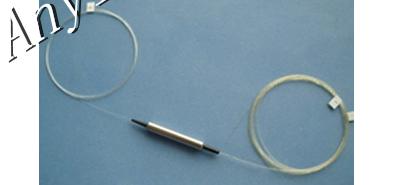

PM Polarizer WDM Hybrid
(T1030/R974)
The PM Polarizer WDM Hybrid is characterized with low ion loss, high isolation, high extinction Ratio, high return loss, excellent environmental stability and reliability.
Features
High Isolation
Low Insertion Loss
High Return Loss
High Extinction Ratio
High stability & Reliability
Applications
Fiber Laser
Testing Instrument
Fiber Amplifier
Specifications
|
Parameters |
Unit |
Values |
||
|
Grade |
- |
Grade P |
Grade A |
|
|
Signal Band Wavelength Range |
nm |
1025~1070 |
||
|
Reflection Band Wavelength Range |
nm |
970~985 |
||
|
Typ. Signal IL, 23℃ (only at Slow Axis) |
dB |
0.5 |
||
|
Max. Signal IL (only at Slow Axis) |
dB |
0.7 |
||
|
Typ. IL over Reflection Band |
dB |
0.4 |
||
|
Max. IL over Reflection Band |
dB |
0.6 |
||
|
Min. Isolation, port 1 to port 2, Signal Wavelength |
dB |
13 |
||
|
Min. Isolation, Signal Channel, Reflection Wavelength |
dB |
30 |
||
|
Min. Return Loss |
dB |
50 |
||
|
Min. Extinction Ratio (only for Signal Channel, C↔P) |
dB |
25 |
23 |
|
|
Min. PDL (only for Signal Channel) |
dB |
23 |
||
|
Max. PDL (only for Reflection Channel) |
dB |
0.1 |
||
|
Max. Optical Power |
- |
Average 1030-1060nm power 60mW, peak power 330W,pulse duration 6ps,pulse frequency 30MHz,pulse energy 2nJ. 980nm power – up to 300mW. |
||
|
Max. Tensile Load |
N |
5 |
||
|
Fiber Type |
- |
PM Panda Fiber for Signal and Common Port, HI 1060 Fiber for Reflection Port. |
||
|
Operating Temperature |
℃ |
-5 to +50 |
||
|
Storage Temperature |
℃ |
-40 to +85 |
||
Remark: * Fiber with expanded core technology.
* The Above specifications is without connector. IL is 0.30dB higher, RL is 5dB lower and ER is 3dB lower for each connector added. The default connector key is aligned to slow, the connector handle power ≤0.5W
Ordering Information
|
PMPWDM– A— B — C - D — E — F — G — H — I |
||
|
A |
Grade |
P= Premium, A = A Grade |
|
B |
Wavelength |
T1030/R974,or others |
|
C |
Fiber Type (Signal and Common Port) |
PM980 |
|
D |
Fiber Type (Reflection Port) |
HI 1060 |
|
E |
Pigtail Type |
BF=Bare Fiber,0.9=0.9mm Tube |
|
F |
Axis Alignment (Signal Port) |
F=Slow axis working, Fast axis blocked |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC,etc |
|
H |
Package Size |
5..5x35mm or others |
|
I |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example：PMPWDM-P- T1030/R974-PM980-Hi1060-BF-F-N-5.5x35-010 |
||
