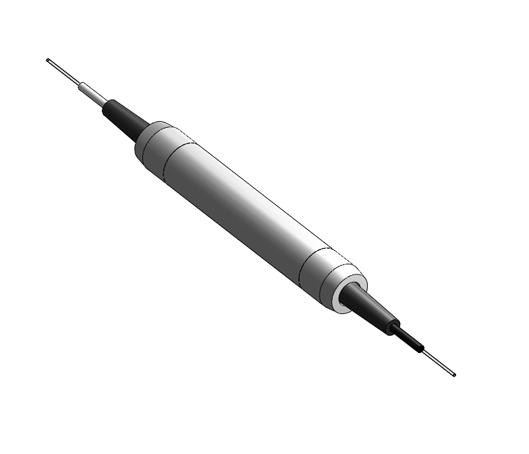

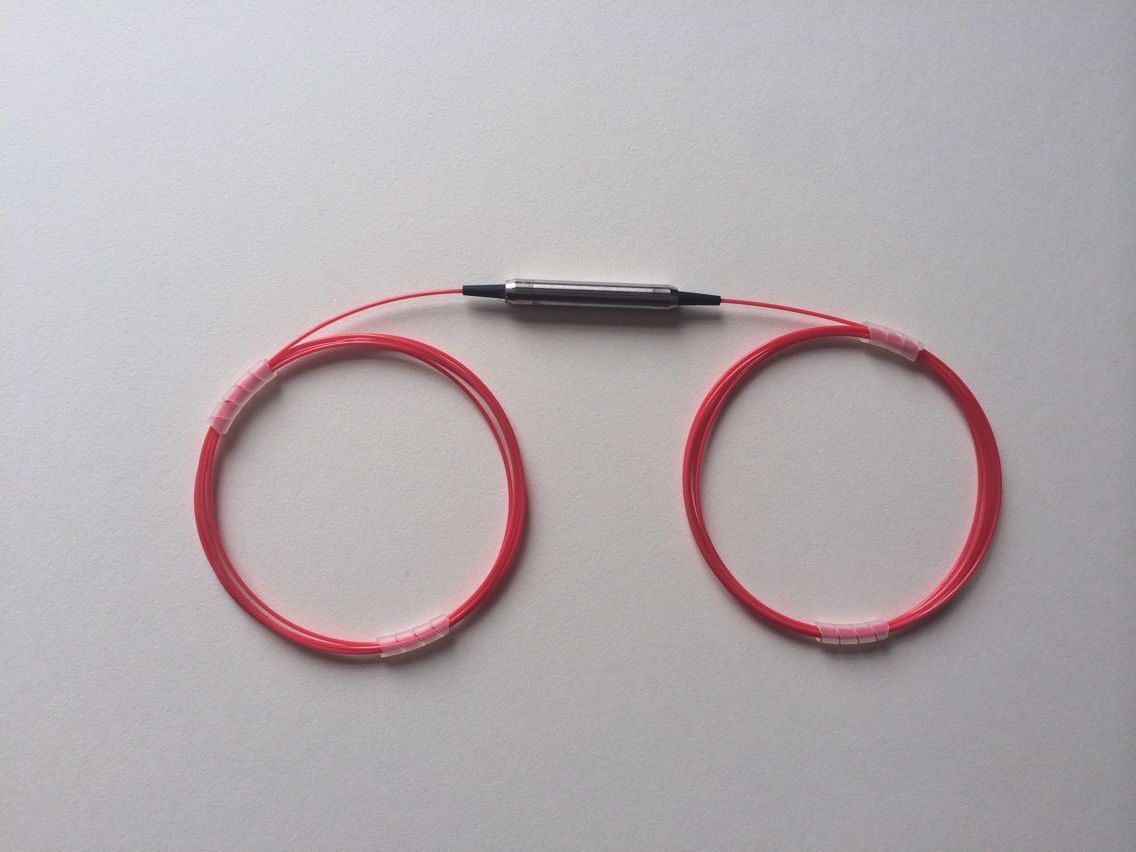

Polarization Insensitive Isolator
Descriptions
Anylink provides Polarization Insensitive Isolator.
Features
High Isolation
Low Insertion Loss
High Return Loss
Low PDL
Expoxy Free in Optical Path
Applications
Optical Fiber Amplifier
CATV Networks
Optical Fiber Lan
Fiber Optic Instruments
Specifications
|
Parameter |
Unit |
Values |
|||
|
Stage |
- |
Single |
Dual |
||
|
Grade |
- |
P |
A |
P |
A |
|
Center Wavelength |
nm |
1310, 1550 |
|||
|
Operating Wavelength Range |
nm |
±15 |
|||
|
Typ. Peak Isolation at 23℃ |
dB |
42 |
40 |
58 |
55 |
|
Min. Isolation at 23℃ |
dB |
30 |
30 |
50 |
48 |
|
Typ. Insertion Loss at 23℃ |
dB |
0.3 |
0.4 |
0.4 |
0.5 |
|
Max. Insertion Loss at（-5~70℃） |
dB |
0.5 |
0.6 |
0.6 |
0.7 |
|
Min. Return Loss (input/output) |
dB |
60/55 |
60/55 |
60/55 |
60/55 |
|
Max.PDL at 23℃ |
dB |
0.05 |
0.1 |
0.06 |
0.10 |
|
Max.PMD |
ps |
0.25 |
0.25 |
0.02 |
0.05 |
|
Max. Optical Power(CW) |
mW |
500 |
|||
|
Max. Tensile Load |
N |
5 |
|||
|
Fiber Type |
- |
SMF-28e fiber |
|||
|
Operating Temperature |
℃ |
-5~+70 |
|||
|
Storage Temperature |
℃ |
-40~+85 |
|||
Remark: * PMD<0.05ps is available. Please refer to below ordering information
*For devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower
Ordering Information
|
PII – A — B — C - D — E — F — G — H |
||
|
A |
Stage |
S=Single Stage, D=Dual Stage |
|
B |
Wavelength |
1310=1310nm, 1480=1480nm , 1550=1550nm L=L Band S=Special |
|
C |
Grade |
P=Premium Grade A=Average Grade S=Special Grade |
|
D |
Tube Type |
0.9=0.9mm loose tube, 2= 2.0mm loose tube, 3= 3.0mm loose tube, etc |
|
E |
Fiber Type |
1=SMF-28e |
|
F |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
G |
Package Size |
5.5x35mm |
|
H |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example：PII-D-1310-P-0.9-1-LC/UPC-5.5x35-010 |
||
