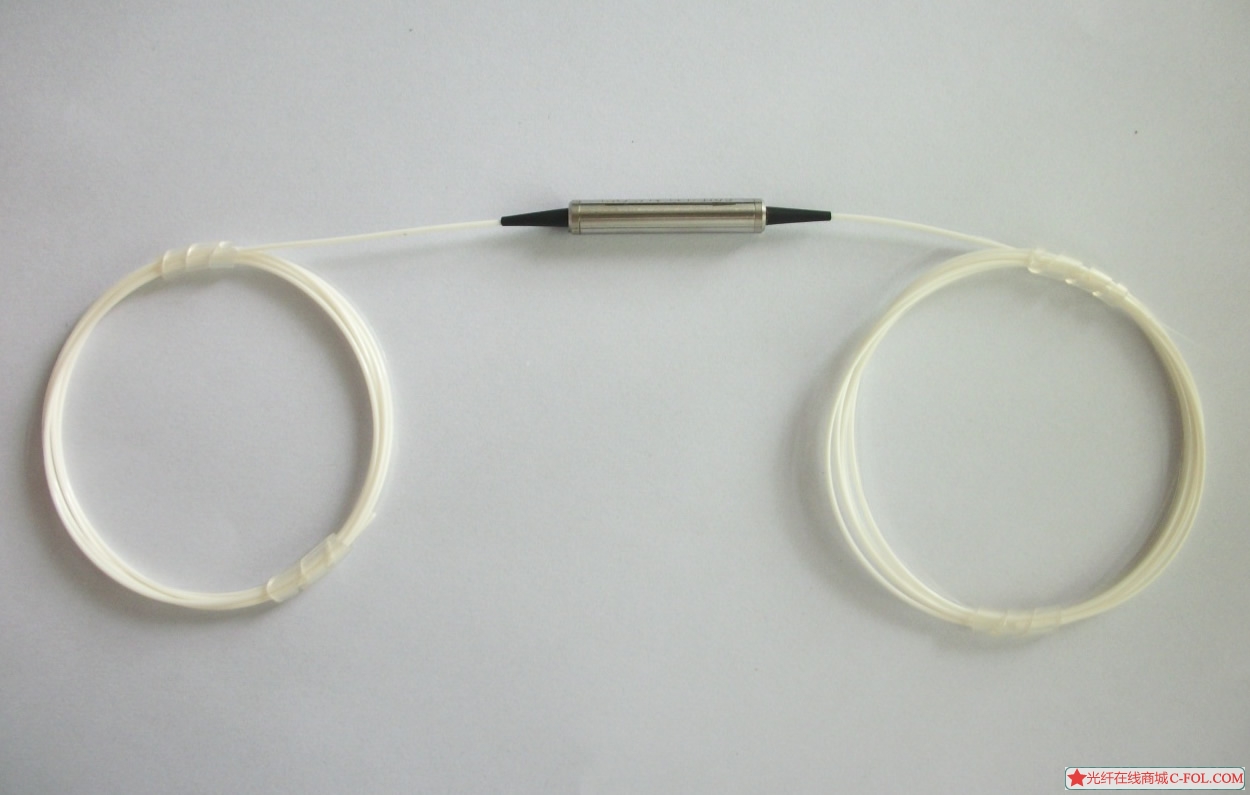

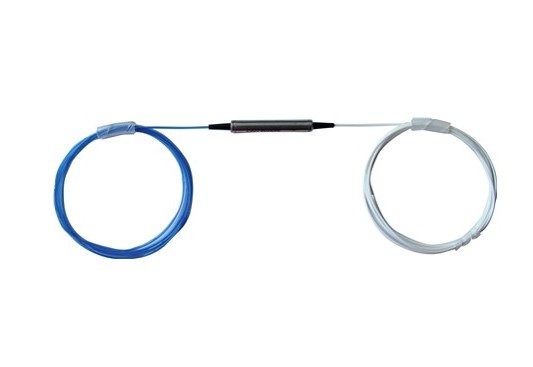

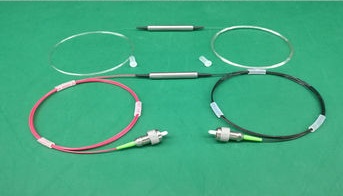

Miniature Isolator
Descriptions
Anylink provides Miniature Single-Stage Isolator.
Features
High Isolation
Low Insertion Loss
High Return Loss
Low PDL
Expoxy Free in Optical Path
Applications
Optical Fiber Amplifier
CATV Networks
Optical Fiber Lan
Fiber Optic Instruments
Specifications
|
Parameters |
Specification |
||
|
P Grade |
A Grade |
||
|
Wavelength(nm) |
1310 or 1550 or 1480 |
||
|
Max Isolation(dB) |
≥40 |
≥39 |
|
|
Isolation(dB) |
≥30 |
≥29 |
|
|
Insertion Loss (Typ.) (dB) |
0.4 |
0.5 |
|
|
Insertion Loss (dB) |
≤0.6 |
≤0.7 |
|
|
Return Loss (dB) |
≥55/50 |
≥55/50 |
|
|
PDL (dB) |
< 0.1 |
< 0.15 |
|
|
PMD (ps) |
0.25(0.05 available upon request) |
||
|
Bandwidth(nm) |
±15 |
||
|
Operating Temperature(°C) |
0 ～ +70 |
||
|
Storage Temperature(°C) |
-40 ～ +85 |
||
|
Fiber Type |
Corning SMF-28 |
||
|
Rated power(mW) |
300 |
||
Remark: with connectors:0.3dB higher for IL,5dB lower for RL
Ordering Information
|
MPII – A — B — C - D — E — F — G |
||
|
A |
Wavelength |
1310=1310nm, 1480=1480nm , 1550=1550nm |
|
B |
Grade |
P=Premium Grade A=Average Grade S=Special Grade |
|
C |
Tube Type |
0.9=0.9mm loose tube, 2= 2.0mm loose tube, 3= 3.0mm loose tube, etc |
|
D |
Fiber Type |
SMF-28e |
|
E |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
F |
Package Size |
3.0x30mm |
|
G |
Fiber length |
003=0.3m, 005=0.5m, 010=1.0m , 100=10m, etc |
|
For example：MPII-1310-P-0.9- SMF-28e -LC/UPC-5.5x35-010 |
||
