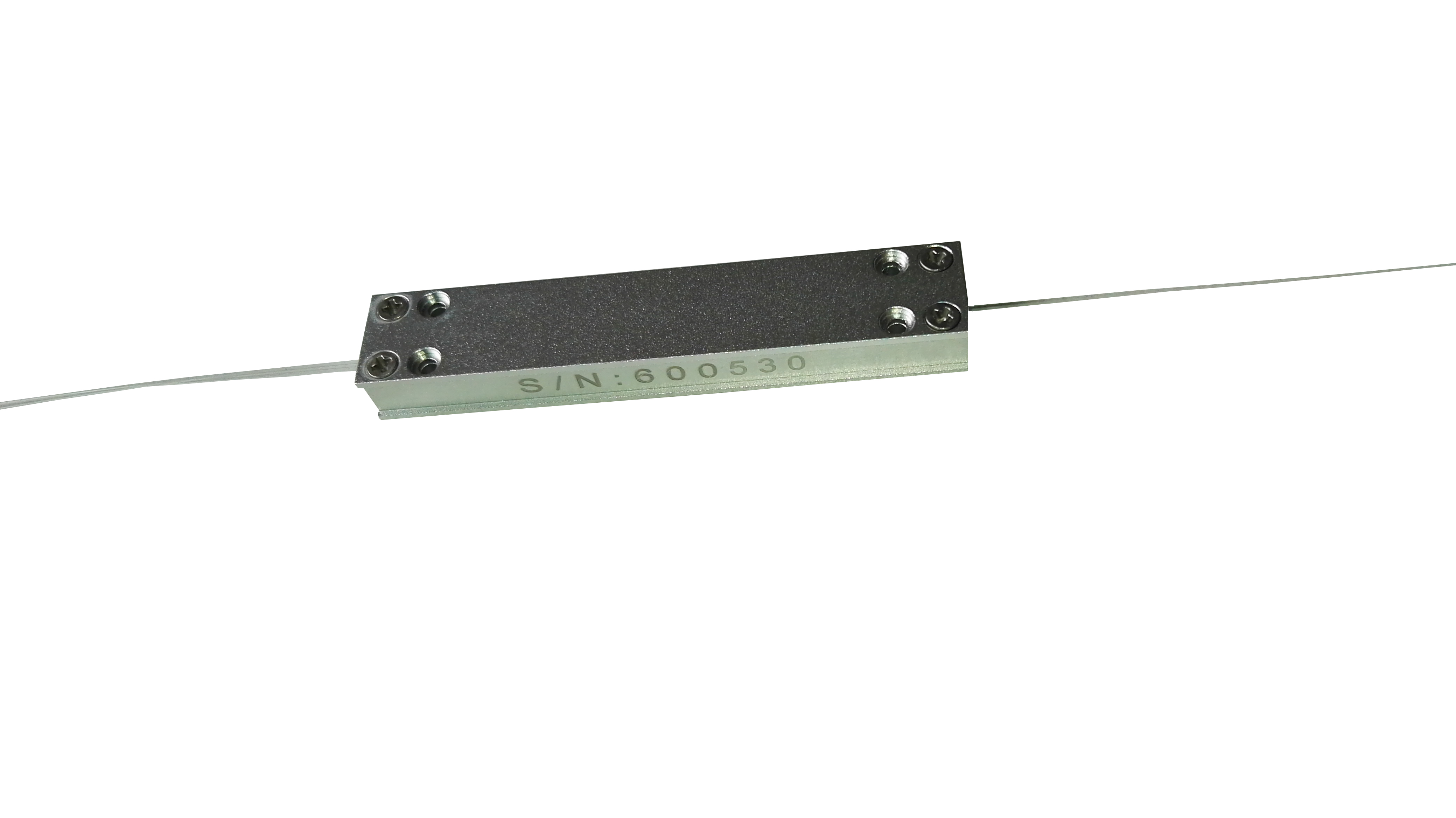

Mode Field Adapter
(PM or Non-PM)
Features
High Power
High Transfer Efficiency
High Extinction Ratio (for PM version)
High stability & Reliability
Applications
Fiber Laser
High Power Fiber Amplifier
Specifications
|
Working wavelength(nm) |
Signal Input Fiber |
Signal Output Fiber |
Signal Insertion Loss (dB) |
Max Power handling(W) |
Package Dimension(mm) |
||
|
Forward Use |
Backward Use |
Forward Use |
Backward Use |
||||
|
1020~1080 |
Hi1060 or 6/125 DCF |
10/125 SCF or DCF |
≤0.3dB |
≤0.5dB |
30 |
10 |
70x12x8m，100x15x10mm，or other |
|
15/125 SCF or DCF |
≤0.3dB |
≤0.7dB |
30 |
10 |
|||
|
20/125 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
25/250 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
30/250 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
20/400 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
10/125 SCF or DCF |
20/125 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
||
|
25/250 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
15/125 SCF or DCF |
20/125 SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
||
|
25/250SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
20/125 SCF or DCF |
20/400SCF or DCF |
≤0.3dB |
≤0.3dB |
30 |
10 |
||
|
20/400SCF or DCF |
25/400SCF or DCF |
≤0.3dB |
≤0.5dB |
30 |
10 |
||
|
PM980 Panda |
PM10/125SCF or DCF |
≤0.3dB |
≤0.5dB |
30 |
10 |
||
|
PM20/125SCF or DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
PM25/250DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
PM10/125 SCF or DCF |
PM20/125DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
||
|
PM30/250DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
|
PM20/400DCF |
≤0.5dB |
≤0.7dB |
30 |
10 |
|||
Remark: ER≥18dB for PM fiber MFA.
Ordering Information
|
MFA — A — B — C — D — E |
||
|
A |
Port Configuration |
1×1 |
|
B |
Pump Wavelength |
1030~1080nm |
|
C |
Signal Input Fiber |
X/125 SCF or DCF, X/250 SCF or DCF,X/400 SCF or DCF , PM980 Panda , PM10/125 SCF or DCF, or other (x=6, 10, 15, 20, 25, 30um, etc) |
|
D |
Signal Output Fiber |
X/125 SCF or DCF, X/250 SCF or DCF,X/400 SCF or DCF , PM980 Panda , PM10/125 SCF or DCF, or other (x=6, 10, 15, 20, 25, 30um, etc) |
|
E |
Package Dimension |
70x12x8mm,100x15x10mm, or other |
|
F |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example： MFA -1×1 - 1064 - 6/125 DCF - 10/125 DCF - 70x12x8 - 010 |
||
