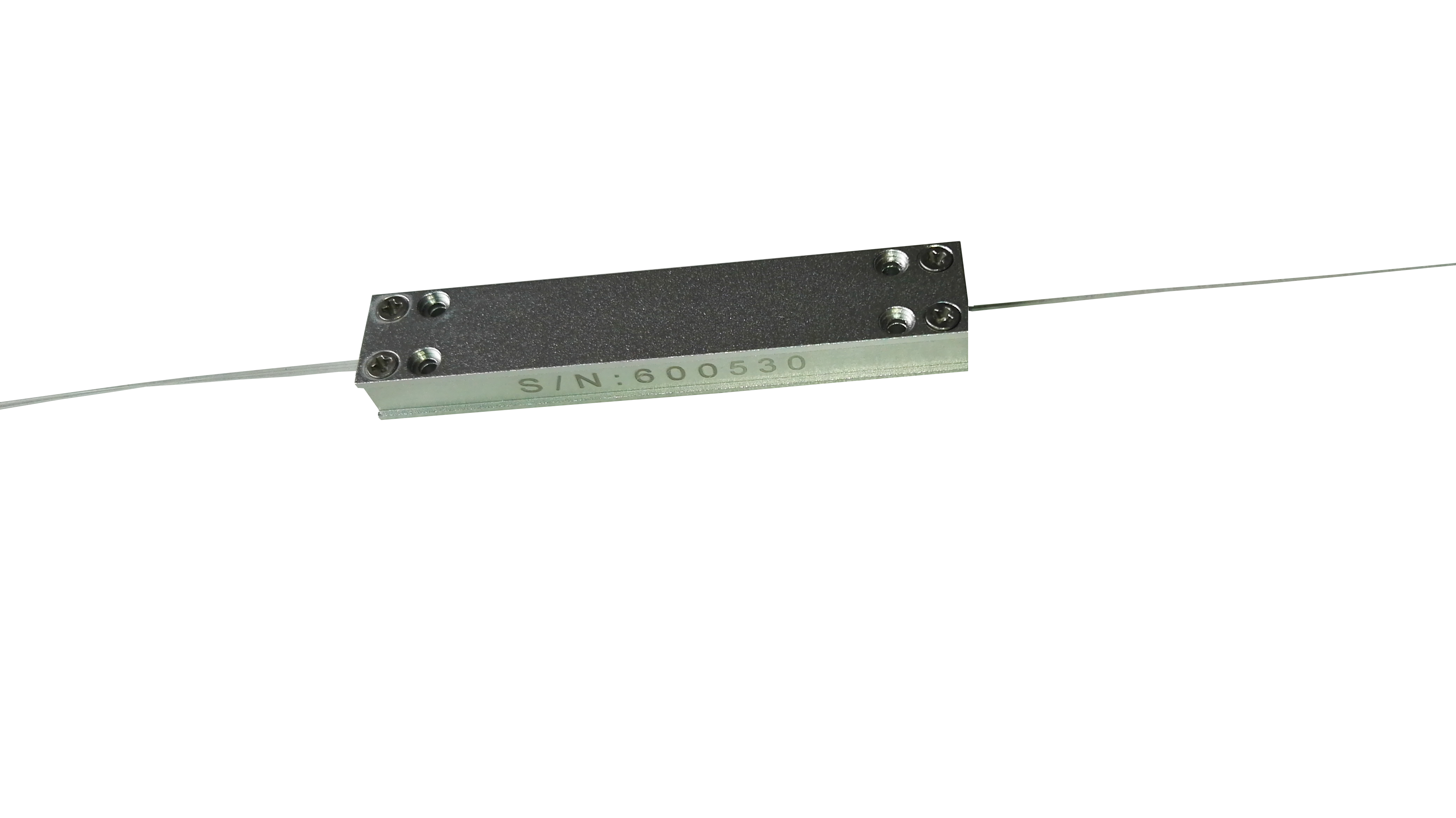

Cladding Power Stripper
(PM or Non-PM)
Features
Low Signal Loss and Beam Quality Degradation
High Stripping Efficiency
High Extinction Ratio (for PM version)
High stability & Reliability
Applications
High Power Fiber Laser
High Power Fiber Amplifier
Specifications
|
Fiber type |
x/125 DC |
x/130 DC |
x/250 DC |
x/400 DC |
|
Pump Wavelength(nm) |
800~1000 |
|||
|
Operating Signal Wavelength(nm) |
800~2000 |
|||
|
Max Signal Insertion loss(dB) |
0.2 |
|||
|
Min. Extinction Ratio(dB) |
18(Input PER>23dB,Only for PM Fiber type) |
|||
|
Min. Stripe efficiency(dB) |
20 |
18 |
17 |
17 |
|
Power handling |
20W，40W， 100W, 200W,500W,etc |
|||
|
Package Dimension(mm) |
70×12×8，100x15x10，or other |
|||
|
Operating Temperature(℃) |
‘0～+75 |
|||
|
Storage Temperature(℃) |
‘-40～+85 |
|||
Remark: x=6, 8, 10, 12, 14, 15, 20, 25, 30um, Other specifications can be made on customer request.
Ordering Information
|
CPS — A — B — C — D — E — F |
||
|
A |
Port Configuration |
1×1 |
|
B |
Pump Wavelength |
915=915nm，975=975nm |
|
C |
Operating Signal Wavelength |
1064=1064nm，1550=1550nm, etc |
|
D |
Fiber type |
X/125 DC,X/130 DC, X/250 DC,X/400 DC (x=6, 8, 10, 12, 14, 15, 20, 25, 30um, etc) |
|
E |
Package Dimension |
70x12x8mm,100x15x10mm, or other |
|
F |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example： CPS - 1×1 - 915 - 1064 - 6/125 DC - 70x12x8 - 010 |
||
