Fused Miniature WDM
Descriptions

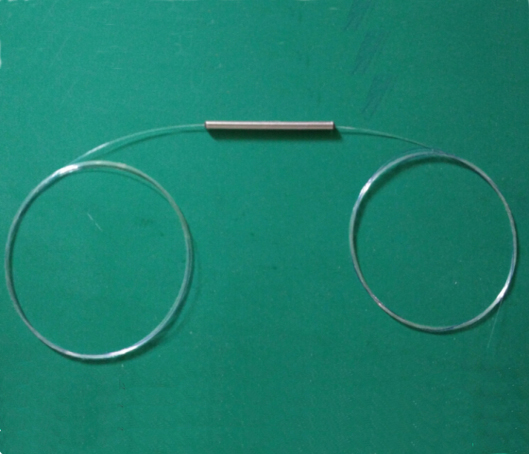

Anylink provides Miniature WDM, the function and the performance of the mini size WDM couplers are the same as the regular WDM couplers. These mini size WDM couplers are widely used in EDFA modules and communication systems
Features
Mini Size
Low Excess Loss
Low PDL
High Isolation
Excellent stability and
reliability
Applications
EDFA Systems
WDM Systems
Fiber Optic Instruments
Specifications
Parameter
Unit
P Grade
A Grade
Operating Wavelength
nm
980/1550
Operating Bandwidth
nm
±10/20
Insertion Loss
dB
≤0.25
≤0.35
Isolation
dB
>20
>18
PDL
dB
≤0.08
≤0.12
Directivity
dB
≥55.00
Operating Temperature
Deg.
-40~+85
Storage Temperature
Deg.
-40~+85
Note: 1. Above specifications are
for device without connector.
2. For devices with connectors, 0.3dB higher for IL.
Ordering Information
|
MWDM – A – B — C – D – E – F – G – H |
||
|
MWDM Stands for Mini WDM |
||
|
A |
Grade |
P=Premium Grade, A=Average Grade |
|
B |
Configuration |
1×2, 2×2, etc |
|
C |
Operating Wavelength |
980/1550 |
|
D |
Pigtail Type |
0.9=0.9mm loose tube, 2.0= 2.0mm loose tube, 3.0=3.0mm loose tube etc |
|
E |
Fiber Type |
SMF-28e, ClearCurve® XB, ofs-16, ofs-20, HI 1060, HI 1060 Flex, etc |
|
F |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
G |
Package Size |
2.4x25mm, 2.4x30mm, 3.0x30mm, etc. |
|
H |
Fiber length |
005=0.5m, 010=1.0m, etc |
|
For example：MWDM-P-1x2-980/1550-0.9- SMF-28e- FC/APC x 3-2.4x25-010 |
||
