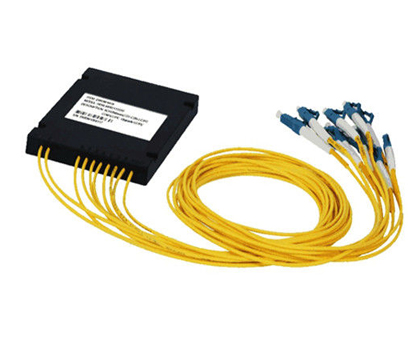

CWDM OADM Module
Descriptions
CWDM, the abbreviation of coarse wavelength division multiplexer, are based on proven thin-film filter technology and can be
used in multi-channel CWDM module. CWDM channel Add/Drop module is cascaded with 1×2 CWDM components.
Features
Wide passband
Low Insertion Loss
High Channel Isolation
High Stability and Reliability
Expoxy Free in Optical Path
Applications
Optical Fiber Communication
Systems
CWDM channel Add/Drop
Metro/Access networks
CATV Networks
Specifications
|
Parameters |
CWDM Add |
CWDM Drop |
|
|
Operating Wavelength(nm) |
1471, 1491 or 1470, 1490 etc. |
||
|
Center wavelength accuracy(nm) |
±0.5 |
||
|
Channel Space(nm) |
20 |
||
|
Passband (@-0.5dB bandwidth)(nm) |
>13 |
||
|
Insertion Loss(dB) |
Add/Drop Ch |
<0.9 |
|
|
Express Ch |
<1.2 |
||
|
Add/Drop Pass band Flatness (dB) |
<0.3 |
||
|
Add/Drop channel Isolation(dB) |
Adjacent Channel |
>30 |
|
|
Non-adjacent Channel |
>40 |
||
|
Express channel Isolation (dB) express |
>25 |
||
|
Insertion Loss Thermal Stability(dB/°C) |
<0.003 |
||
|
Wavelength Temperature Shifting(nm/ C) |
<0.002 |
||
|
PDL(dB) |
<0.1 |
||
|
PMD(ps) |
<0.1 |
||
|
Return Loss(dB) |
>45 |
||
|
Directivity(dB) |
>50 |
||
|
Power handling(mW) |
≤500 |
||
|
Operating Temperature(°C) |
-5 ～ +75 |
||
|
Storage Temperature(°C) |
-40 ～ +85 |
||
|
Package Size(mm) |
100×80×10 |
||
Remark: 1. Above specifications are for device without connector.
2. For devices with connectors, 0.3dB higher for IL.
Ordering Information
|
OADM – A — B — C - D — E — F — G — H — I |
||
|
A |
Channel Spacing |
C=CWDM |
|
B |
Channels Number |
2=2Ch |
|
C |
1st Channels |
1471, 1491, 1511, 1531, 1551, 1571, 1591, etc |
|
D |
Pigtail Type |
B=250um bare fiber, 0.9=0.9mm loose tube, 2.0= 2.0mm loose tube, 3.0=3.0mm loose tube etc |
|
E |
Fiber Type |
SMF-28e, SMF-28e XB, Others |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
H |
Package Size |
100×80×10mm, Others. |
|
I |
Fiber length |
005=0.5m, 010=1.0m, etc |
|
For example：OADM –C- 2-14911551--0.9-SMF-28e-FC/APC-100x80x10-010 |
||
