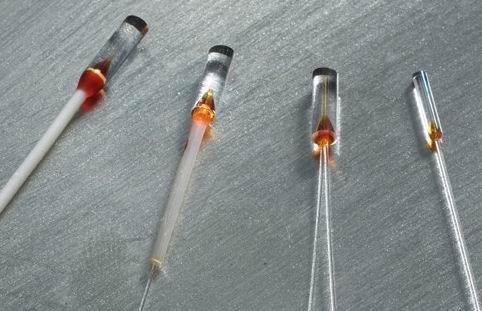

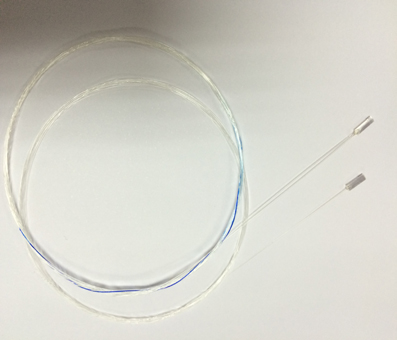

Single/Dual Fiber Capillary Pigtail
Features
Low Insertion Loss, High Return Loss
High Precise Polished Angle
High Reliability and Stability
GR-1221 Compliance
Fiber Collimator Assembly
WDM/Switches/Isolator
Fiber optic Lab Use
Specifications
|
Parameters |
Unit |
Single Fiber |
Dual Fiber |
|
Operation Wavelength |
nm |
1310+30nm, 1550+30nm or 1310/1550+30nm, 980/1550+30nm or custom wavelength |
|
|
AR Coating Reflection Rate |
- |
≤0.25% |
|
|
Polishing angle |
- |
0°, 6°, 8°, 9°, 11° or customer specified |
|
|
Fiber Type |
- |
SM Fiber , MM Fiber, or Customer Specified |
|
|
Return Loss |
dB |
SM:≥65; MM:≥30 |
|
|
Dimensions (Diameter)x(Length) |
mm |
1.8x (4.5~7.0) , 1.0x (3.5~5.0) , or Customer Specified |
|
|
Operating Temperature |
(℃) |
-20～75 |
|
|
Storage Temperature |
(℃) |
-40～85 |
|
Remark: Customized different Pigtail type/ length tolerance/specifications.
Ordering Information
|
Pigtail – A - B — C - D — E — F — G — H — I — J - K |
||
|
A |
capillary Type |
S=Single fiber D=Dual fiber 3=3 fibers 4=4 fibers |
|
B |
capillary Dimensions |
Φ1.8*4.5mm, Φ1.8*6mm, Φ1.0*5mm, etc |
|
C |
Dual fiber core space |
0=no space, 143=143um space, etc |
|
D |
Operation Wavelength |
630,850,980,1310, 1550 or customer specified |
|
E |
Fiber Type |
SM Fiber , MM Fiber, or Customer Specified |
|
F |
Fiber Position |
V=Vertical (2
fiber vertical to the 8D angle) |
|
G |
Polishing angle |
0°, 6°, 8°, 9°, 11° or customer specified |
|
H |
Tube Type |
BF=Bare Fiber,0.9=0.9mm Tube |
|
I |
Jacket Color(0.9mm Tube Only) |
White(standard), Blue, etc |
|
J |
Jacket Material(0.9mm Tube Only) |
PVC, Hytrel, Riser OFNR, PVDF, Customer Request |
|
K |
Total length |
005=0.5m; 010=1.0m 100=10m etc |
|
For example：Pigtail-S-Φ1.8*6-980-HI1060 flex-0-9°-0.9-White-Hytrel-100 |
||
