Fiber optic adapter
Features
Low ion loss,high return loss
High-precision alignment
Comply with Telcordia,ANSI,TIA / EIA,NTT,JIS standards
Shell material or sleeve material is optional
Applications
CATV systems
telecommunications
networks,
test equipment
Each device connects the system
a local area network (LANs)
data processing networkFiber
Specifications
|
Connector |

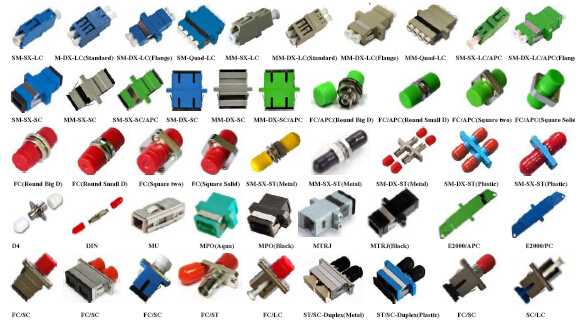

FC,SC,LC,MU,ST,E2000,SMA,D4,DIN |
|
|
Interface type |
PC,APC |
|
|
Mode |
SM |
MM |
|
Insertion loss(dB) |
≤0.2 |
|
|
Durability |
≥1000times |
|
|
Operating Temp |
-40℃～+85℃ |
|
Remark: Customized different adapter type /specifications.
Ordering Information
|
Adapter – A — B — C — D — E — F |
||
|
A |
Connector Type -L |
FC, SC, LC, MU, ST, D4, E2000, DIN, etc |
|
B |
Connector Type -R |
FC, SC, LC, MU, ST, D4, E2000, DIN, etc |
|
C |
SX/DX/QX |
SX=Simplex ,DX=Duplex, QX=Quadplex |
|
D |
Mode |
SM=Singlemode, MM=Multimode |
|
E |
Body Color |
Beige, Aqua, Blue, Green, Metal, etc |
|
F |
Flange |
W=With, W/O=Without |
|
For example：Adapter -FC -SC -SX -SM-Metal-W |
||
