Variable Optical Attenuator (VOA)
Descriptions

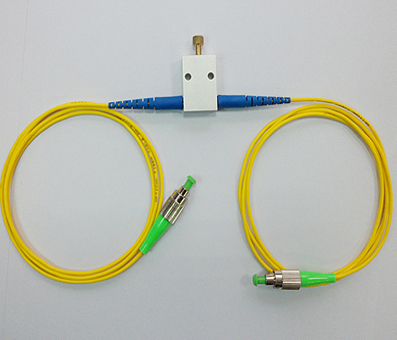

This Variable Attenuator uses collimator lens technology enabling the user to change attenuation through the twist of a top mounted screw. Use this variable attenuator to simulate the loss in a fiber system or testing your system’s dynamic range.
Features
Wide attenuation range
High precision
Low original loss
Applications
Optical passive component test
Fiber communication on system test
Specifications
|
Parameter |
Specification |
|||||
|
Center wavelength(nm) |
1550 |
1490 |
1310 |
980 |
780 |
630 |
|
Operating bandwidth(nm) |
±40 |
±40 |
±40 |
±20 |
±20 |
±20 |
|
Attenuation range(dB) |
0.6~50 |
0.6~50 |
0.6~50 |
1.0~50 |
1.3~50 |
1.5~50 |
|
Original loss(dB) |
≤0.6 |
≤0.6 |
≤0.6 |
≤1.0 |
≤1.3 |
≤1.5 |
|
Return loss(dB) |
≥50 |
|||||
|
Fiber type |
SMF-28e |
HI1060 |
SM800 |
SM600 |
||
|
Handling power(mW) |
≤500 |
|||||
|
Operating temperature(℃) |
0 ~ +70 |
|||||
|
Storage temperature(℃) |
-40 ~ +85 |
|||||
|

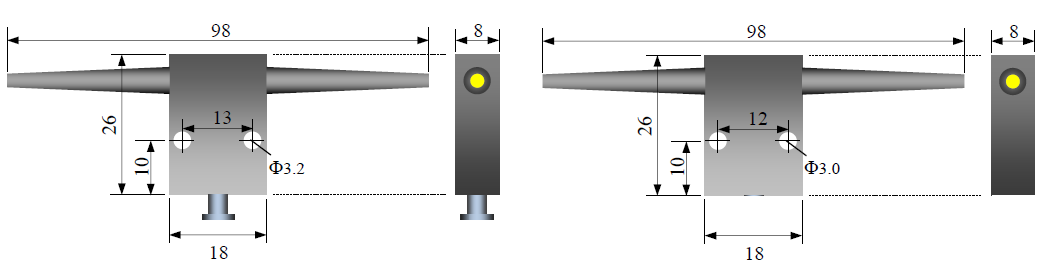

Dimensions(mm) |
26×18×8 |
|||||
Remark: Customized different VOA type/ length tolerance/specifications.
Ordering Information
|
VOA – A — B — C — D — E — F |
||
|
A |
Wavelength |
1550nm, 1310nm, 1064nm, 850nm, 630nm, etc |
|
B |
Adjustment type |
HA=Hand adjustment , SA=screw adjustment |
|
C |
Tube Type |
0.9=0.9mm Tight Buffer/Tubing,2.0= 2.0mm Jacket, 3.0=3.0mm Jacket, 3mm armour Jacket, etc |
|
D |
Fiber type |
SMF-28e, HI1060, SM800, SM600, Customer Request |
|
E |
Fiber length |
005=0.5m; 010=1.0m 100=10m etc |
|
F |
Connector Type |
N=None,FC/APC, SC/APC, LCAPC, MU/PC, ST/PC, D4, etc |
|
For example：VOA -1064—HA-2.0-HI1060-005-SC/PC |
||
