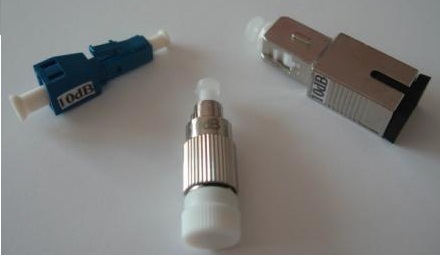

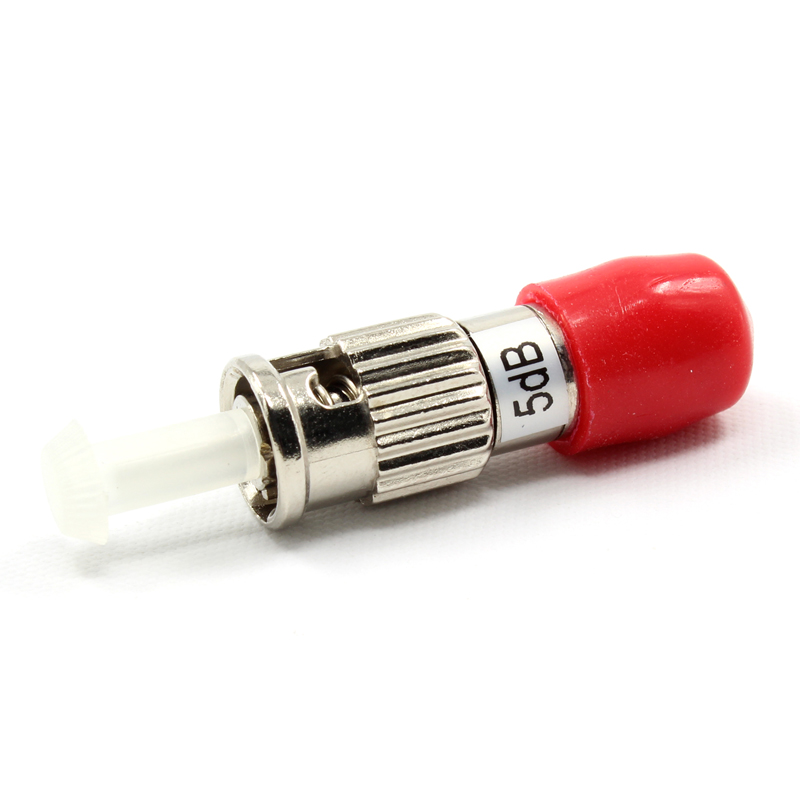

Fixed fiber attenuator
Descriptions

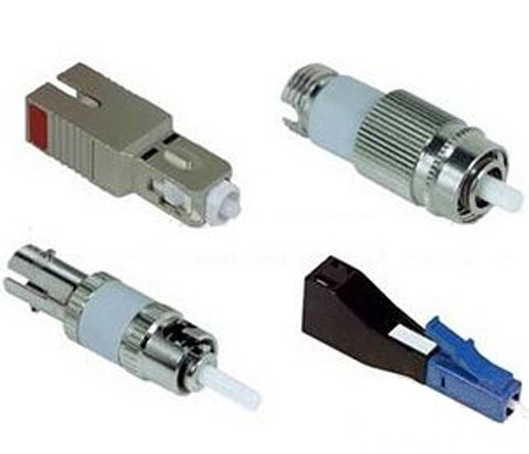

Anylink. manufactures FC, SC, LC, MU, ST and other types Fixed Fiber Attenuator. It is widely used in communication systems and for the component testing.
Features
High Density
High repeatability
Applications
Components
Fiber Systems and device
Test instruments
Specifications
|
Type Parameter |
Plug |
On-line |
|
|
Type |
SC/PC, SC/APC, FC/PC, FC/APC, LC/PC, LC/APC, MU/PC, ST/PC,etc |
Size: Ф4.0×L70,Ф2.4×L50, Ф1.2×L45,etc |
|
|
Wavelength (nm) |
1310/1550 ± 50 |
||
|
Attenuation range (dB) |
1 dB, 2 dB, 3 dB, 5 dB, 10 dB, 20 dB etc. |
||
|
Attenuation precision (dB) |
±0.3（Attenuation range≤3dB）; ±10%（Attenuation range＞3dB） |
||
|
Operating temperature (℃) |
-40 ~ +85 |
||
|
Storage temperature (℃) |
-40 ~ +85 |
||
Remark: Customized different connector type/ length tolerance/specifications.
Ordering Information
|
FFA - Plug - A - B |
||
|
A |
Connetor Type |
SC/PC, SC/APC, FC/PC, FC/APC, LC/PC, LC/APC, MU/PC, ST/PC,etc |
|
B |
Attenuation Value |
01=1dB, 02=2dB, 03=3dB, 05=5dB, 10=10dB, 20=20dB, etc |
|
For example FFA-Plug-SC/APC-05 |
||
