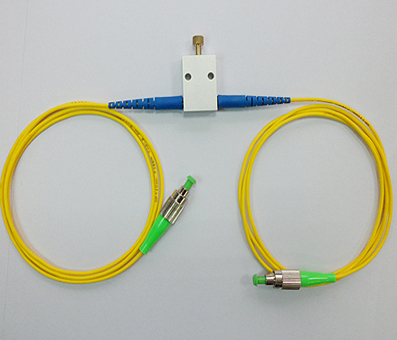

PM Variable Optical Attenuator (PMVOA)
Descriptions
This Variable Attenuator uses collimator lens technology enabling the user to change attenuation through the twist of a top mounted screw. Use this variable attenuator to simulate the loss in a fiber system or testing your system’s dynamic range.
Features
Wide attenuation range
High precision
Low original loss
High extinction ratio
Applications
Optical passive
component test
Fiber communication on system
test
Optics lab use
Specifications
|
Parameter |
Specification |
|||||
|
Center wavelength(nm) |
1550 |
1490 |
1310 |
980 |
850 |
630 |
|
Operating bandwidth(nm) |
±40 |
±40 |
±40 |
±20 |
±20 |
±20 |
|
Attenuation range(dB) |
0.6~50 |
0.6~50 |
0.6~50 |
1.0~50 |
1.0~50 |
1.5~50 |
|
Original loss(dB) |
≤0.6 |
≤0.6 |
≤0.6 |
≤1.0 |
≤1.0 |
≤1.5 |
|
ER(dB) |
≥20 |
≥18 |
||||
|
Return loss(dB) |
≥50 |
|||||
|
Fiber type |
PM1550 |
PM1490 |
PM1310 |
PM980 |
PM850 |
PM630 |
|
Handling power(mW) |
≤500 |
|||||
|
Operating temperature(℃) |
0 ~ +70 |
|||||
|
Storage temperature(℃) |
-40 ~ +85 |
|||||
|
Dimensions(mm) |
26×18×8 |
|||||
Remark: Customized different PMVOA type/ length tolerance/specifications.
Ordering Information
|
PMVOA – A — B — C — D — E — F |
||
|
A |
Wavelength |
1550nm, 1310nm, 980nm, 850nm, 630nm, etc |
|
B |
Adjustment type |
HA=Hand adjustment , SA=screw adjustment |
|
C |
Tube Type |
0.9=0.9mm Tight Buffer/Tubing,2.0= 2.0mm Jacket, 3.0=3.0mm Jacket, 3mm armour Jacket, etc |
|
D |
Fiber type |
PM1550, PM1310, PM980, PM850, PM630, Customer Request |
|
E |
Fiber length |
005=0.5m; 010=1.0m 100=10m etc |
|
F |
Connector Type |
N=None,FC/APC, SC/APC, LCAPC, MU/PC, ST/PC, D4, etc |
|
For example：PMVOA -1550—HA-2.0-PM1550-010-FC/APC |
||
