PM Fiber Arrays

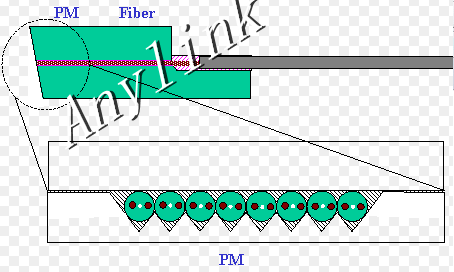

Descriptions
Anylink can customize PM Fiber Arrays with different size specifications according to customer's special requirements.

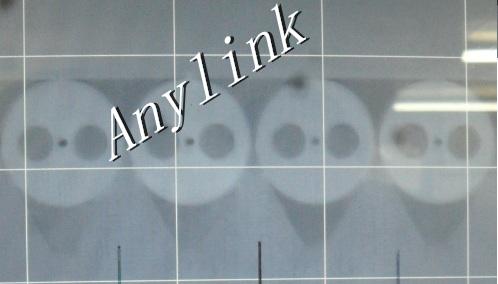

Features
High Extinction Ratio
Low Insertion Loss
High Return Loss
Excellent environmental stability and reliability
Applications
Fiber Laser Source
Fiber Sensor System
Communication System
Polarization maintaining optical system
Specifications
|
Parameter |
Fiber Arrangement(1 row - N channels) |
|||||
|
1-1ch |
1-2ch |
1-4ch |
1-8ch |
1-16ch |
1-32ch |
|
|
Operating wavelength(nm) |
850,980,1310, 1550 or customer specified |
|||||
|
Fiber core spacing |
/ |
250um |
127um or 250um |
127um |
127um |
|
|
Extinction Ratio (dB) |
≥28 |
≥25 |
≥23 |
≥20 |
≥18 |
|
|
Return loss(dB) |
≥50 |
|||||
|
Fiber type |
PM850, PM980, PM1310, PM1550 or others |
|||||
|
Operating temperature(℃) |
-20～70 |
|||||
|
Storage temperature（℃） |
-40～85 |
|||||
|
FA Dimension |
2.5*2.5*6 or 2.5*2.5*8 |
2.5*2.5*10 |
2.5*2.5*10 |
2.5*2.5*10 or 3.5*2.5*10 |
3.5*2.5*10 |
5.7*2.5*12 |
|
（W×H×L）（mm） |
||||||
Remark: the channel number, direction of polarization-maintaining, operating wavelength or product size can be customer specified
Ordering Information
|
PMFA – A - B — C - D — E — F — G — H — I — J |
||
|
A |
FA channels |
1=1-1ch, 2=1-2ch, 4=1-4ch, 8=1-8ch, 16=1-16ch, etc |
|
B |
Fiber core spacing |
0=no space, 127=127um space, 250=250um space, etc |
|
C |
Operation Wavelength |
850=850nm,980=980nm,1310=1310nm, 1550=1550nm,etc |
|
D |
Fiber Type |
PM850, PM980, PM1310, PM1550 or others |
|
E |
Stress axis Polarity |
HF= Horizontal to Fiber array direction(standard), PF=Perpendicular to Fiber array direction, |
|
F |
Polishing angle |
0=0°, 6=6°, 8=8°, 9=9°, or customer specified |
|
G |
Tube Type |
BF=Bare Fiber,0.9=0.9mm Tube |
|
H |
Jacket Color(0.9mm Tube Only) |
Blue(standard), White, etc |
|
I |
FA Dimension |
2.5*2.5*6, 2.5*2.5*8, 2.5*2.5*10, 3.5*2.5*10, etc |
|
J |
Total length |
005=0.5m; 010=1.0m 100=10m etc |
|
For example：PMFA-8-127-1550-PM1550-HF-8-BF-Blue-2.5*2.5*10-010 |
||
