MT-MT Jumper
Descriptions

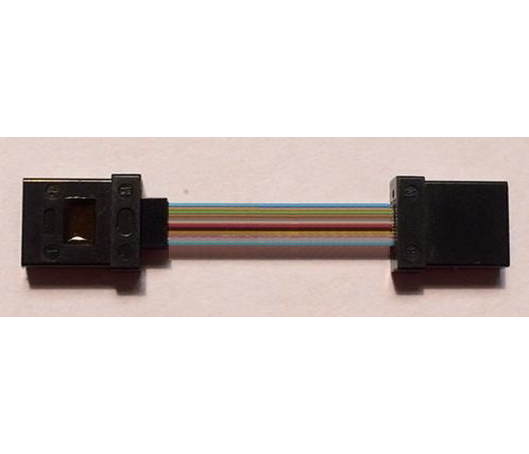

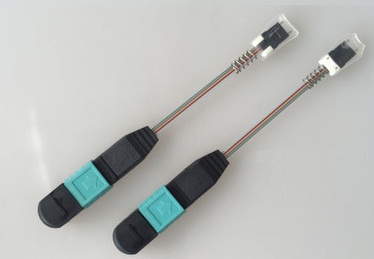

Anylink offers 12-fiber MT-MT patch cords used in the parallel light optical transceiver module－(QSFP、SFP), the connection to the optical lens and External Port. The total length of the tolerance is short, so that the connection can be realized in the small gap space of the equipment.
Features
Improves
and simplifies fiber routing
Transmission
rate: 40Gbps/100Gbp
Simple
structure easy to locate
High quality
Ferrule, High Density
Applications
Parallel light optical transceiver module
Military
Application
Super
computers
Specifications
|
Parameter |
Specification |
||
|
Connector Type |
Input：MT (male/female)；Ferrule Type：8F、12F、24F、48F etc |
||
|
Output：MT (male/female)；Ferrule Type：8F、12F、24F、48F etc |
|||
|
Operating wavelength(nm) |
SM |
MM |
|
|
1310/1550 |
850/1300 |
||
|
Fiber Arrangement |
Fiber Polarity: UU=Key-up/Key-up Construction; |
||
|
UD=Key-up/Key-down Construction |
|||
|
Angle polishing |
PC、APC(8°) |
PC |
|
|
Fiber type |
Corning ZBL、G657 etc |
OM2、OM3、OM4 etc |
|
|
Insertion loss(dB) |
Ultra low loss MT |
IL≤0.35 |
IL≤0.30 |
|
Normal MT |
IL≤0.70 |
IL≤0.6 |
|
|
Return loss(dB) |
RL(UPC)≥20dB,RL(APC)≥55dB |
/ |
|
|
Fiber tube type |
Bare ribbon,Φ0.9 tube |
||
|
Durability |
MT Plug-in & out≥200 times |
||
|
Operating temp |
-20℃ to +70℃ |
||
Remark: Customized different connector type/ length tolerance/specifications.
Ordering Information
|
MT Ferrule Cord - A / B / C - D / E / F - G - H - I - J |
||
|
A |
MT Type |
MT Ferrule |
|
B |
Female or Male |
F - Female M - Male |
|
C |
Polishing Angle |
PC APC |
|
D |
MT Type |
MT Ferrule |
|
E |
Female or Male |
F - Female M - Male |
|
F |
Polishing Angle |
PC APC |
|
G |
Number of Ferrule Channels |
4 - 4F 8 - 8F 12 - 12F 24 - 24F etc |
|
H |
Fiber Type |
Corning ZBL G657 OM2 OM3 OM4 etc |
|
I |
Fiber Arrangement |
Fiber Polarity: UU=Key-up/Key-up Construction; UD=Key-up/Key-down Construction |
|
J |
Tube Type |
BRC- Bare Ribbon Cable |
|
K |
Total length |
001 - 0.1m 003 – 0.3m 005 – 0.5m etc |
|
For example MT Ferrule Cord-MT/F/PC-MT/M/PC-12-OM3-UU-BRC-003 |
||
