Polarization Beam Combiner/Splitter

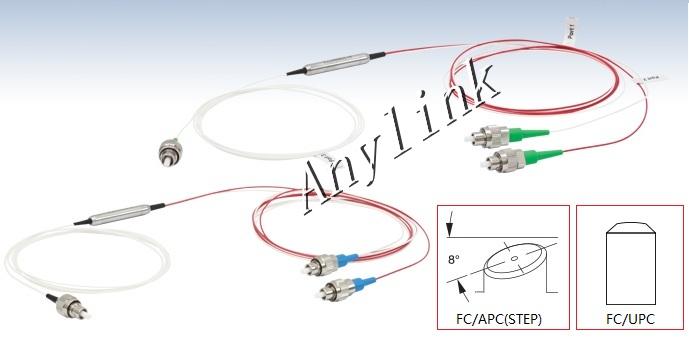

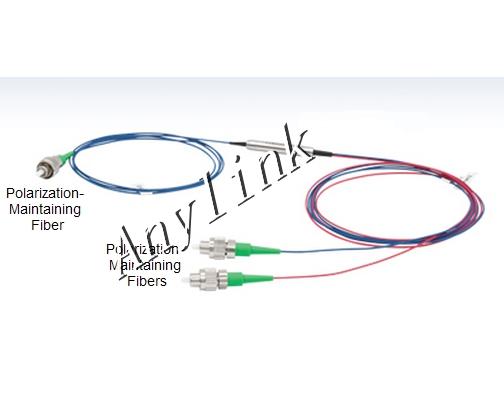

The Polarization Beam Combiner/Splitter is a micro-optic device that can combine two polarized light signals into one output fiber, or split one light into two polarized outputs with their polarization states orthogonal to each other. The typical configuration of PBC uses the two PM fiber for input and the SM fiber for output.
Features
*Low ion loss
*High extinction ratio
*Excellent stability and reliability
Applications
* Fiber Optical Current Transducer
* Fiber Sensors
* Raman amplifier
* Coherent Telecommunication Systems
Specifications
|
Parameters |
Unit |
Values |
||||
|
Grade |
- |
P |
A |
P |
A |
|
|
Center Wavelength |
nm |
1310,1550 |
1064,980 |
|||
|
Operating Wavelength Range |
nm |
±40 |
±20 |
|||
|
Typ. Insertion Loss at 23℃ |
dB |
0.4 |
0.5 |
0.6 |
0.7 |
|
|
Max. Insertion Loss at 23℃ |
dB |
0.6 |
0.7 |
0.8 |
0.9 |
|
|
Min. Extinction Ratio at 23℃ |
dB |
22 |
20 |
22 |
20 |
|
|
Directivity |
dB |
50 |
||||
|
Min. Return Loss |
dB |
50 |
||||
|
Max. Optical Power(CW) |
mW |
300 |
||||
|
Max. Tensile Load |
N |
5 |
||||
|
Fiber Type |
Port 1 & 2 |
- |
PM Panda fiber |
|||
|
Port 3 |
SMF-28E, Hi1060 ,PM Panda fiber or others |
|||||
|
Operating temperature |
℃ |
-5~+70 |
||||
|
Storage temperature |
℃ |
-40~+85 |
||||
Remark: The Above specifications is without connector. IL is 0.3dB (1310~1550nm) or 0.5dB (1064nm) higher, RL is 5dB lower and ER is 2dB lower for each connectoradded. The default connector key is aligned to slow axis.
Ordering Information
|
PBC/PBS – A — B — C— D — E — F — G— H — I |
||
|
A |
Port Number |
1×2(For PBS) , 2×1(For PBC) |
|
B |
Wavelength |
1064=1064nm , 1310=1310nm,1550=1550nm,S=Special |
|
C |
Grade |
P=Premium grade, A=A grade |
|
D |
Working axis Type |
0=port3 SM fiber;1=Hi1060, 2=port3 PM fiber and slow axis aligned to port1, 3= port 3 PM fiber and slow axis align 45°to port1, 4=others |
|
E |
Pigtail Type |
B=bare fiber, 0.9=0.9mm loose tube |
|
F |
Fiber Type |
SMF-28e, Hi1060, PM1550, PM1310, PM980, etc |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
H |
Package Size |
5.5x35mm |
|
I |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m;100=10m etc |
|
For example：PBS-1*2-1064-P-2-0.9-PM980-FC/APC*3-5.5x35-010 |
||
