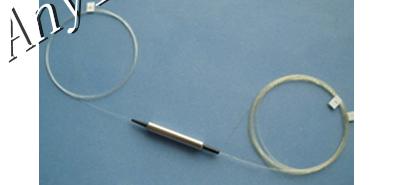

PM Tap Isolator
(1030nm)
Descriptions
The pm tap isolator is characterized with low ion loss, high isolation, high extinction Ratio, high return loss, excellent environmental stability and reliability.
Features
High Isolation
Low Insertion Loss
High Return Loss
High Extinction Ratio
High stability & Reliability
Applications
Fiber Laser
Testing Instrument
Communication Systems
Specifications
|
Parameters |
Unit |
Values |
|
|
Stage |
|
Single Stage |
Dual Stage |
|
Signal Wavelength Range |
nm |
1030±5 |
|
|
Max. Signal Insertion Loss (In to Out ) ＠1030±5nm,23℃ |
dB |
4.2(for 1%), 4.4(for 5%) |
7.2( for 1%), 7.4( for 5%) |
|
Max. Signal Insertion Loss (In to Out ) ＠1030±5nm,0～50℃ |
dB |
4.7(for 1%), 4.9(for 5%) |
7.9( for 1%), 8.1( for 5%) |
|
Insertion Loss (Input to Tap) ＠1030,23℃ |
dB |
23.4~24.2( for 1±0.2） |
26.4~27.2( for 1±0.2） |
|
Max. Excess Loss ＠1030±5nm,23℃ |
dB |
4.2 |
7.2 |
|
Max. Excess Loss ＠1030±5nm,0～50℃ |
dB |
4.7 |
7.9 |
|
Typ. Signal Peak Isolation (Output to Input) |
dB |
35 |
50 |
|
Min. Signal Isolation ＠1030±5nm,23℃ |
dB |
25 |
40 |
|
Min. Extinction Ratio (only for Fast axis blocked) |
dB |
22 |
22 |
|
Min. Return Loss (for all ports) |
dB |
50 |
50 |
|
Max. Optical Power proper polarization |
- |
average power 60mW,peak power 330W,pulse duration 6ps,pulse frequency 30MHz,pulse energy 2nJ |
|
|
Max. Tensile Load |
N |
5 |
|
|
Fiber Type |
- |
PM 980 Panda Fiber |
|
|
Operating Temperature |
℃ |
0 to +50 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
Remark: * Fiber with expanded core technology.
* The Above specifications is without connector. IL is 0.40dB higher, RL is 5dB lower and ER is 3dB lower for each connector added. The default connector key is aligned to slow, the connector handle power ≤0.5W
Ordering Information
|
PMTAPI– A— B — C - D — E — F — G — H — I |
||
|
A |
Stage |
S=Single-core stage, D=Dual-core stage |
|
B |
Center Wavelength |
1030=1030nm |
|
C |
Tap ratio |
01=1/99,02=2/98,03=3/97,……,10=10/90,20=20/80,30=30/70,……50=50/50,or others |
|
D |
Fiber Type |
Hi1060,PM980 |
|
E |
Pigtail Type |
BF=Bare Fiber,0.9=0.9mm Tube |
|
F |
Axis Alignment |
F=Slow axis working, Fast axis blocked |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC,etc |
|
H |
Package Size |
5..5x35mm or others |
|
I |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m 100=10m etc |
|
For example：PMTAPI-S-1030-03-PM980-BF-F-N-5.5x35-010 |
||
