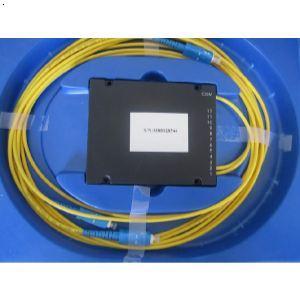

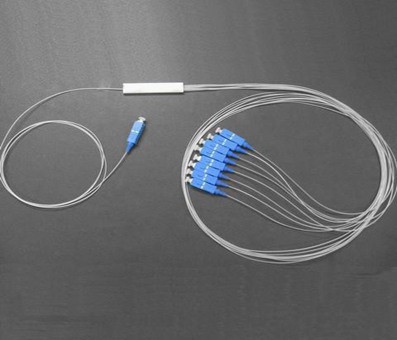

PM Splitter
Descriptions
The PM Splitter is built based on accurate alignment system and the mature manufacture technology. It is fully compliant with Telcordia GR-1209/1221 reliability qualification requirement
Low Insertion Loss, Good
Uniformity
High polarization Extinction Ratio
Excellent environmental stability and reliability
Applications
Communication System
Polarization maintaining optical system
Fiber Laser or Sensor
Specifications
|
Parameter |
1×2 |
1×3 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×24 |
1×32 |
1×64 |
|
Fiber type |
SM13-PS-U25A or SM15-PS-U25A or others |
|||||||||
|
Operating wavelength (nm) |
1310±40 or 1550±40 |
|||||||||
|
Insertion loss (dB) |
≤3.9 |
≤6.2 |
≤7.2 |
≤9.4 |
≤10.4 |
≤12.6 |
≤13.7 |
≤15.8 |
≤16.8 |
≤21.0 |
|
Uniformity (dB) |
≤0.4 |
≤0.5 |
≤0.6 |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.2 |
≤1.2 |
≤1.5 |
≤2.5 |
|
ER(dB) |
≥20 |
≥20 |
≥20 |
≥20 |
≥18 |
≥18 |
≥18 |
≥18 |
≥18 |
≥16 |
|
DL(dB) |
≥55 |
|||||||||
|
Input port |
250um bare fiber or 0.9mm loose tube |
250um bare fiber or 0.9/2.0/3.0mm loose tube |
||||||||
|
Output port |
250um bare fiber or 0.9mm loose tube |
250um bare fiber or 0.9/2.0/3.0mm loose tube |
||||||||
|
Operating temperature(℃) |
-5～+70 |
|||||||||
|
Storage temperature(℃) |
-40～+85 |
|||||||||
|
Power Handling ( mW) |
≤500 |
|||||||||
|
Module Size (mm) |
40×4×4 |
50x7x4, 60x12x4 or others |
60x12x4,100x40x6 or others |
|||||||
|
Parameter |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Fiber type |
SM13-PS-U25A or SM15-PS-U25A or others |
||||
|
Operating wavelength (nm) |
1310±40 or 1550±40 |
||||
|
Insertion loss (dB) |
≤4.2 |
≤7.8 |
≤11.2 |
≤14.2 |
≤17.3 |
|
Uniformity (dB) |
≤0.6 |
≤1.2 |
≤1.4 |
≤1.8 |
≤2.0 |
|
ER(dB) |
≥20 |
≥20 |
≥18 |
≥18 |
≥16 |
|
DL(dB) |
≥55 |
||||
|
Input port |
250um bare fiber or 0.9mm loose tube |
250um bare fiber or 0.9/2.0/3.0mm loose tube |
|||
|
Output port |
250um bare fiber or 0.9mm loose tube |
250um bare fiber or 0.9/2.0/3.0mm loose tube |
|||
|
Operating temperature(℃) |
-5～+70 |
||||
|
Storage temperature(℃) |
-40～+85 |
||||
|
Module Size (mm) |
40×4×4 |
50x7x4, 60x7x4 or others |
60×7×4, 60x12x4 or others |
||
Note: 1. Above specifications are for device without connector.
2.For devices with connectors, 0.3dB higher for IL, 3dB lower for RL and 2dB lower for ER.
3. For device with connector, key aligned to slow axis
Ordering Information
|
PMSPLI – A - B — C - D — E — F — G — H — I — J |
||
|
A |
Port Number |
1×2, 2×2, 1×4, 2×4, 1×8, 2×8, 1×16,2×16, 1×32, 2×32, etc |
|
B |
Fiber Type |
PM1550, PM1310,, etc |
|
C |
Axis Polarity |
SA=Slow-Axis (in line with key), FA=Fast-Axis (perpendicular to key) , etc |
|
D |
Tube Type |
0.9=0.9mm loose tube,2.0= 2.0mm loose tube, 3.0=3.0mm loose tube etc |
|
E |
Jacket Color |
Blue(standard), White, Clear (Bare Fiber Only), etc |
|
F |
Jacket Material |
PVC, Hytrel, Riser OFNR, PVDF, Customer Request |
|
G |
Connector Type |
SC/APC,SC/PC,FC/APC,FC/PC,LC/APC,LC/PC,MU/PC etc |
|
H |
Fiber length |
005=0.5m; 010=1.0m 100=10m etc |
|
I |
Module Size |
40×4×4mm , 50x7x4 mm, 60x7x4mm, 100x40x6 etc. |
|
For example：PMSPLI—1×4-PM1550-SA-0.9-Blue-PVDF-FC/APC*5-010-40×4×4 |
||
