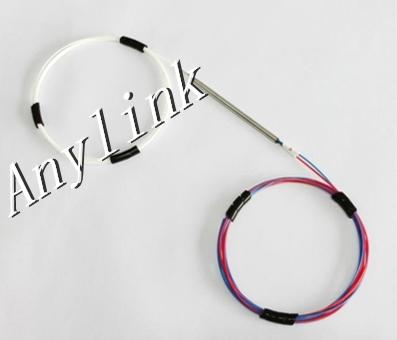

PM Fused Standard Coupler
Descriptions
PM Coupler is fully compliant with Telcordia GR-1209/1221 reliability qualification requirement
Features
Low Insertion Loss, Good
Uniformity
Wide Operating Wavelength
High extinction ratio
Excellent environmental stability and reliability
Applications
Communication System
Fiber Sensor
Optical gyro
Optical amplifier
Specifications
|
Parameter Operating wavelength(nm) |
CR |
IL (dB) |
ER (dB) |
Dimensions |
||
|
P grade |
A grade |
P grade |
A grade |
|||
|
780, 850 ±20 |
50/50 |
≤3.8 |
≤4.0 |
≥18 |
≥16 |
3×54 or longer |
|
40/60 |
≤4.8/3.0 |
≤5.2/3.2 |
||||
|
33/67 |
≤5.5/2.4 |
≤5.8/2.6 |
||||
|
25/75 |
≤6.9/1.9 |
≤7.2/2.1 |
||||
|
20/80 |
≤8.2/1.7 |
≤8.5/1.9 |
||||
|
10/90 |
≤11.8/1.4 |
≤12.0/1.6 |
||||
|
5/95 |
≤15.0/1.0 |
≤15.2/1.2 |
||||
|
1/99 |
≤22.5/0.7 |
≤22.8/0.8 |
||||
|
980, 1060 ±20 |
50/50 |
≤3.6 |
≤3.8 |
≥20 |
≥18 |
3×54 or longer |
|
30/70 |
≤5.75/2 |
≤6.1/2.1 |
||||
|
20/80 |
≤8.0/1.5 |
≤8.2/1.7 |
||||
|
10/90 |
≤11.6/1.2 |
≤11.8/1.4 |
||||
|
5/95 |
≤14.8/0.8 |
≤15.0/1.0 |
||||
|
3/97 |
≤16.57/0.45 |
≤17.12/0.6 |
||||
|
2/98 |
≤18.4/0.35 |
≤18.9/0.5 |
||||
|
1/99 |
≤22.0/0.4 |
≤22.5/0.6 |
||||
|
0.1/99.9 |
28~32 / 0.25 |
|||||
|
1310, 1480, 1550 ±20 |
50/50 |
≤3.4 |
≤3.6 |
≥20 |
≥18 |
3×54 or longer |
|
30/70 |
≤5.6/1.9 |
≤5.75/2 |
||||
|
20/80 |
≤7.6/1.4 |
≤8.0/1.5 |
||||
|
10/90 |
≤11.2/0.85 |
≤11.6/1.0 |
||||
|
5/95 |
≤14.2/0.6 |
≤14.8/0.8 |
||||
|
3/97 |
≤15.2/0.4 |
≤15.8/0.5 |
||||
|
2/98 |
≤16.8/0.35 |
≤17.4/0.45 |
||||
|
1/99 |
≤21.5/0.3 |
≤22/0.4 |
||||
|
0.1/99.9 |
28~32 / 0.25 |
|||||
Note: 1. If tap port coupling ratio is ≤ 5%, ER will be 2dB lower; for ≤1% tap port, ER is out of concern
2. The specifications are connector excluded.
3. For devices with connectors, 0.3dB (PC)/0.4 dB (APC) higher for IL, 5dB lower for RL and 2dB lower for ER.
4. For device with connector, key aligned to slow axis if no advance requirement.
Package Dimensions
Ordering Information
|
PMC – A - B — C - D — E — F — G — H — I |
||
|
A |
Grade |
P=Premium grade, A=A grade |
|
B |
Port Number |
1×2, 2×2 |
|
C |
Wavelength |
780, 850, 980, 1060, 1310, 1550, Other |
|
D |
Coupling Ratio |
50/50, 40/60, 30/70, 20/80…. 1/99, etc |
|
E |
Pigtail Type |
0.25=0.25mm bare fiber, 0.9=0.9mm loose tube, etc |
|
F |
Fiber Type |
PM1550, PM1310, PM980,PM850, etc |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC,SC/APC, FC/UPC, FC/APC, etc |
|
H |
Package Size |
3x54mm, etc |
|
I |
Fiber length |
003=0.3m, 005=0.5m, 010=1.0m, 100=10m, etc |
|
For example：PMC-P-1×2-1060-30/70-0.9-PM980-FC/APC*3-3x54-010 |
||
