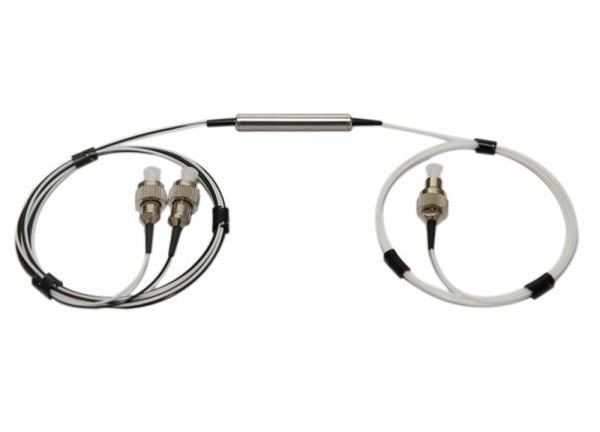

3 Ports Polarization Insensitive Optical Circulator
*Low ion loss
*Optical Path Epoxy Free
*High isolation
*Excellent stability and reliability
Applications
* Fiber lasers
* Fiber Sensors
* Optical Communications
* FBG Applications
Specifications
|
Parameter |
Unit |
Values |
|||
|
Center Wavelength |
nm |
1310 |
1550 |
C&L |
1610 |
|
Operating Wavelength Range |
nm |
±30 |
±30 |
1525~1610 |
±30 |
|
Typ. Insertion loss(1→2, 2→3) |
dB |
0.6 |
|||
|
Max. Insertion loss(1→2, 2→3) |
dB |
0.8 |
|||
|
Typ. Isolation(3→2, 2→1) |
dB |
50 |
|||
|
Min. Isolation(3→2, 2→1) |
dB |
40 |
|||
|
Max. PDL |
dB |
0.15 |
|||
|
Max. PMD |
ps |
0.1 |
|||
|
Min. Return loss |
dB |
50 |
|||
|
Min. Cross talk |
dB |
50 |
|||
|
Max. Optical Power (CW) |
mW |
500 |
|||
|
Max. Tensile Load |
N |
5 |
|||
|
Fiber Type |
- |
SMF-28e |
|||
|
Operating Temperature |
℃ |
-5 ~ +70 |
|||
|
Storage Temperature |
℃ |
-40 ~ +85 |
|||
|
Package Dimensions |
mm |
5.5 x 50 |
|||
Remark: The Above specifications is without connector. IL is 0.3dB higher, RL is 5dB lower for each connectoradded.
Ordering Information
|
PICIR – A — B — C— D — E — F — G |
||
|
A |
Port Number |
3= 3Ports |
|
B |
Wavelength |
1310=1310nm,1550=1550nm,CL=C&L Band, 1610=1610nm,S=Special |
|
C |
Tube Type |
B=bare fiber, 0.9=0.9mm loose tube, etc |
|
D |
Fiber Type |
SMF-28e, SMF-28e XB, etc |
|
E |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
F |
Package Size |
5.5x50mm |
|
G |
Fiber length |
003=0.3m, 005=0.5m; 010=1.0m;100=10m etc |
|
For example：PICIR-1*2-1550-0.9- SMF-28e -FC/APC*3-5.5x50-010 |
||
