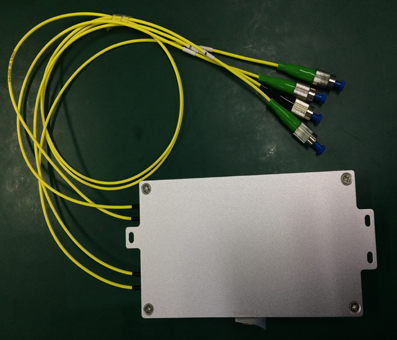

SM Coupler Module
Descriptions
Anylink provides 1×N (2×N) coupler splitter modules, which are cascaded with the single mode couplers. These modules are widely used for FTTH, LAN, and CATV optical networks, Compliant with TelcordiaGR1209 & TelcordiaGR1221
Features
Low Excess Loss
Excellent stability and
reliability
Applications
FTTX Systems
LAN, WAN and Metro Networks
CATV Networks
Fiber Optic Instruments
Specifications
|
Parameter |
Standard Coupler Module (SSSCM); Wide Band Coupler Module (SWBCM) |
|||||||
|
Nx4 |
Nx6 |
Nx8 |
Nx12 |
Nx16 |
Nx24 |
Nx32 |
Nx64 |
|
|
N=1,2 |
||||||||
|
Operating Wavelength(nm) |
1310 or 1550, Others |
|||||||
|
Operating Bandwidth(nm) |
SSSCM: ±15; SWBCM: ±40 |
|||||||
|
Insertion Loss(dB) |
≤6.9 |
≤9.0 |
≤10.4 |
≤12.4 |
≤13.8 |
≤15.8 |
≤17.4 |
≤20.9 |
|
Typical Excess Loss(dB) |
0.25 |
0.3 |
0.4 |
0.5 |
0.55 |
0.6 |
0.7 |
0.85 |
|
PDL(dB) |
≤0.25 |
≤0.35 |
≤0.35 |
≤0.45 |
≤0.45 |
≤0.55 |
≤0.55 |
≤0.65 |
|
Operating Temperature(℃) |
-40-85 |
|||||||
|
Fiber Length |
1.00±0.10m, Others |
|||||||
|
Package (L×W×H) (mm) |
100×80×10 |
100×80×10 |
100×80×10 |
125×96×16 |
125×96×16 |
141×115×18 |
141×115×18 |
Others |
|
Parameter |
Dual Window Coupler Module (SDWCM); Three-Window Coupler Module (STWCM) |
|||||||
|
Nx4 |
Nx6 |
Nx8 |
Nx12 |
Nx16 |
Nx24 |
Nx32 |
Nx64 |
|
|
N=1,2 |
||||||||
|
Operating Wavelength(nm) |
SDWCM: 1310 and 1550; STWCM:1310,1490 and 1550 |
|||||||
|
Operating Bandwidth(nm) |
SDWCM: ±40; STWCM:1310 ±40,1490 ±10 and 1550 ±40 |
|||||||
|
Insertion Loss(dB) |
≤7.2 |
≤9.6 |
≤10.8 |
≤13.2 |
≤14.4 |
≤16.8 |
≤18 |
≤21.6 |
|
Typical Excess Loss(dB) |
0.3 |
0.4 |
0.45 |
0.55 |
0.6 |
0.7 |
0.75 |
0.9 |
|
PDL(dB) |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.5 |
≤0.5 |
≤0.6 |
≤0.6 |
≤0.7 |
|
Operating Temperature(℃) |
-40-85 |
|||||||
|
Fiber Length |
1.00±0.10m, Others |
|||||||
|
Package (L×W×H) (mm) |
100×80×10 |
100×80×10 |
100×80×10 |
125×96×16 |
125×96×16 |
141×115×18 |
141×115×18 |
Others |
|

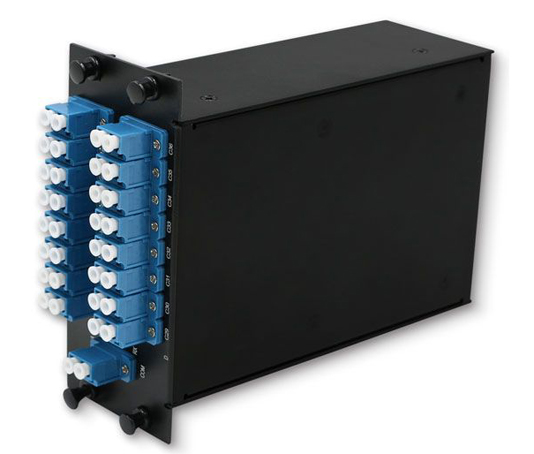

Configuation |
LGX |
19 Inch Rack |
|||
|
1U |
2U |
1U |
2U |
3U |
|
|
Package Dimensions (mm) |
130×127×29 |
130×127×58 |
482.6×278×44 |
482.6×278×88 |
482.6×278×132 |
|
Installation Dimensions (mm) |
118 (2-Φ6) |
118×29.2 (2-Φ6) |
462.7×11.0 (4-Φ6) |
462.7×27.5 (6-Φ6) |
462.7×49.5 (6-Φ6) |
Remark: Above specifications are for device without connector.
Ordering Information
|
XXXXX– A - B — C - D — E — F — G — H — I |
||
|
SSSCM, SWBCM, SDWCM, STWCM. |
||
|
A |
Grade |
P=Premium Grade, A=Average Grade, O=Others |
|
B |
Configuration |
1×4, 1×8, 1x16, 1x32, etc |
|
C |
Operating Wavelength |
1310nm, 1550nm, 1310&1550nm etc. |
|
D |
Coupling Ratio |
EVEN |
|
E |
Pigtail Type |
B=250um bare fiber, 0.9=0.9mm loose tube, 2.0= 2.0mm loose tube, 3.0=3.0mm loose tube etc |
|
F |
Fiber Type |
SMF-28e ClearCurve® XB, ofs-16, ofs-20, HI 1060, HI 1060Flex, others |
|
G |
Connector Type |
N=None, LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, etc |
|
H |
Package Size |
100x80x10mm, 141×115×18mm, etc. |
|
I |
Fiber length |
005=0.5m, 010=1.0m, etc |
|
For example：SSSCM-P-1x4-1550-EVEN-0.9- SMF-28e - SC/UPCx5 -100x80x10-010 |
||
